Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-JSGX220
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Touch Screen: |
Siemens From Germany |
Servo Motor: |
Panasonic From Japan |
Inline: |
After The Bottle Enters Another Conveyor Belt From The Sliding Track, It Is Pushed Into A Set Of Angle Changing Modules Through A Set Of Pneumatic Mechanisms And Has An Inclination Angle With The Horizontal Plane, And Then Enters The Labeling Machine Conve |
Product Name: |
Biochemistry Reagent Filling Capping And Labeling Line |
Total Power: |
Around 6.5KW |
Cap Sorting Method: |
Cap Vibration Bowl + Sound Insulation Cover |
Main Customers: |
Roche, Abbott, Nihon Khoden, Randox, Mindray Etc. |
Detection Method: |
Missing Filling, Abnormal Filling (obviously Less Filling), No Cap Or Crooked Cap. Detect And Reject |
Touch Screen: |
Siemens From Germany |
Servo Motor: |
Panasonic From Japan |
Inline: |
After The Bottle Enters Another Conveyor Belt From The Sliding Track, It Is Pushed Into A Set Of Angle Changing Modules Through A Set Of Pneumatic Mechanisms And Has An Inclination Angle With The Horizontal Plane, And Then Enters The Labeling Machine Conve |
Product Name: |
Biochemistry Reagent Filling Capping And Labeling Line |
Total Power: |
Around 6.5KW |
Cap Sorting Method: |
Cap Vibration Bowl + Sound Insulation Cover |
Main Customers: |
Roche, Abbott, Nihon Khoden, Randox, Mindray Etc. |
Detection Method: |
Missing Filling, Abnormal Filling (obviously Less Filling), No Cap Or Crooked Cap. Detect And Reject |
The bottle feeding method used in this product is highly efficient and user-friendly. The bottle holder is pushed from the circulating conveyor belt into the unpowered track and runs intermittently. The bottle is manually inserted into the bottle holder, which saves time and speeds up product format changeover, making production smoother and more cost-effective.
The Diagnostic Reagent Filling Line is also equipped with a Videojet VJ6330 thermal transfer printer that ensures unparalleled printing quality and precision. This printer is highly configurable and can be easily integrated into the production line.
One of the most notable features of this product is the use of bottle holders. The four bottle holders have the same appearance and size, and the bottle holder can correct the four bottles to the same appearance (same height, same bottle mouth center). There is no need to replace parts or adjust the star wheel of the incoming and outgoing equipment and the conveyor belt track. There is no need to mechanically adjust or replace parts for filling and capping. You only need to replace the bottle holder and click the buttons to select different filling specifications on the HMI. This feature saves a lot of labor costs and makes the production process more streamlined.
The rectangular (smaller bottle) labeling feature of this product is also highly efficient and user-friendly. Two small bottles need to be labeled on four sides, and they cannot share the same labeling machine with the other two large bottles. Therefore, it is recommended to purchase a semi-automatic labeling machine with manual bottle placement for smaller bottles, which saves time and ensures maximum efficiency.
The main motor used in this product is ABB from Swiss, which ensures unparalleled performance and durability. This motor is highly reliable and can withstand even the most challenging production environments.
In summary, the Diagnostic Reagent Filling Line is the ultimate solution for biochemistry reagent filling, capping, and labeling. This product is highly efficient, cost-effective, and user-friendly, and is equipped with state-of-the-art features that ensure maximum productivity and minimal downtime. If you are in the market for a reliable and efficient reagent filler, filling and capping machine, look no further than the Diagnostic Reagent Filling Line.
| Filling and capping method | Single Station Pre-capping + Single Station Capping (servo Motor Control) |
| Servo motor | Panasonic From Japan |
| Cap taking method | The Cam Mechanism Drives The Mechanical Arm To Automatically Pick Up And Deliver The Caps. |
| Compressed air | 0.4~0.8MPA |
| Voltage and HZ | 208V 60Hz |
| Capping torque control | Servo Technology |
| Bottle feeding method | The Bottle Holder Is Pushed From The Circulating Conveyor Belt Into The Unpowered Track And Runs Intermittently. The Bottle Is Manually Inserted Into The Bottle Holder. |
| PLC | Siemens From Germany |

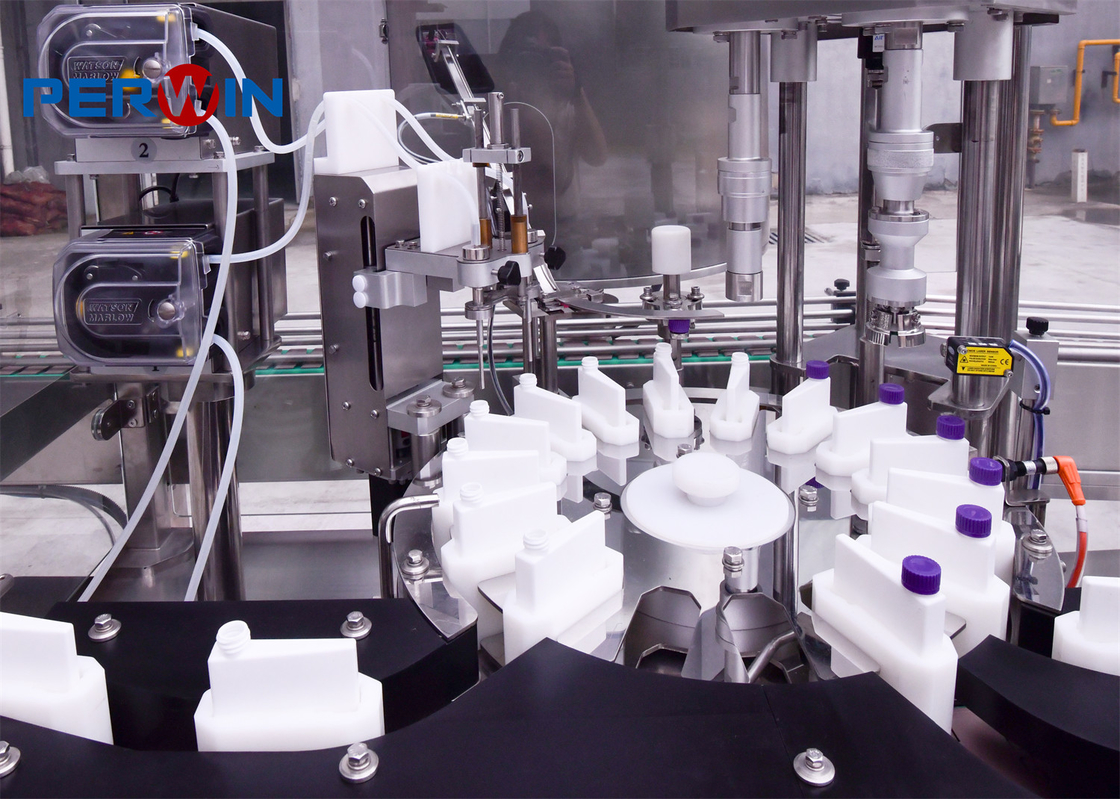

| Measurement method | 2 Peristaltic Pumps, Each Pump Is Controlled By An Independent Stepper Motor, And The Filling Accuracy Is ±1~2%. Setup And Operation On Touch Screen |
| Production line composition | Filling And Capping All-in-one Machine + Labeling Machine (labeling Two Large Bottles) + Semi-automatic Labeling Machine (labeling Two Small Bottles) |
Technical parameters for the Biochemistry reagent filling line (filling and capping machine, Biochemistry reagent filler):
The PERWIN PW-JSGX220 is a versatile reagent filler and capper that can handle both 10ml and 40ml actual filling volumes. This makes it an ideal solution for laboratories and pharmaceutical companies that need to fill and cap small to medium-sized batches of diagnostic reagents.
The cap sorting method used in the PERWIN PW-JSGX220 is Cap Vibration Bowl + Sound Insulation Cover. This ensures that caps are sorted and applied accurately and efficiently, reducing the risk of errors and increasing productivity.
Designed and manufactured in Qidong, Jiangsu, the PERWIN PW-JSGX220 is built to the highest standards of quality and reliability. It is certified by CE, ISO, GMP, UL, TUV, and SGS, ensuring that it meets all relevant safety and quality standards.
The main motor in the PERWIN PW-JSGX220 is an ABB motor from Switzerland, while the PLC is a Siemens PLC from Germany. These high-quality components ensure that the machine operates smoothly and reliably, even in demanding production environments.
The PERWIN PW-JSGX220 features an inline design, which means that bottles are pushed into a set of angle changing modules through a set of pneumatic mechanisms and have an inclination angle with the horizontal plane. This ensures that bottles are properly aligned and positioned for labeling.
The PERWIN PW-JSGX220 is available for purchase with a minimum order quantity of 1. The price is negotiable, and the machine is packaged in export standard wooden cases for safe and secure shipping. The delivery time is 60 working days, and payment terms are TT. The supply ability is 10pcs/month.
In summary, the PERWIN PW-JSGX220 Diagnostic Reagent Filling Line is a reliable and efficient filling and capping machine that is ideal for filling and capping a wide range of diagnostic reagents. Whether you are a laboratory or a pharmaceutical company, the PERWIN PW-JSGX220 is a great investment that will help you improve your productivity and efficiency.
Our PERWIN PW-JSGX220 model is a high-quality filling and capping machine for biochemical and diagnostic reagents. It is manufactured in Qidong, Jiangsu and certified with CE, ISO, GMP, UL, TUV, and SGS. The minimum order quantity is 1 and the price is negotiable. The product is packaged in export standard wooden cases and has a delivery time of 60 working days. Payment terms are TT and the supply ability is 10pcs/month.
The filling line is equipped with a servo motor, Panasonic from Japan, for precision control. The clamping conveyor mechanism automatically separates the bottle body and the bottle holder. The bottle enters another conveyor belt along the sliding track, and the bottle holder returns to the bottle insertion station along the circulating conveyor belt.
The PLC is Siemens from Germany, ensuring smooth and efficient operation. Compressed air required is 0.4~0.8MPA. The measurement method consists of 2 peristaltic pumps, each pump is controlled by an independent stepper motor, and the filling accuracy is ±1~2%. Setup and operation are done on a user-friendly touch screen.
Our Diagnostic Reagent Filling Line product is supported by our expert technical support team, who are available to assist with any questions or issues you may have. We offer a range of services to ensure the ongoing performance of your filling line, including:
Our technical support team is dedicated to providing the highest level of service, and we are committed to ensuring your satisfaction with our product. Contact us for more information on how we can support you.
Q: What is the brand name of the Diagnostic Reagent Filling Line?
A: The brand name of the Diagnostic Reagent Filling Line is PERWIN.
Q: What is the model number of the Diagnostic Reagent Filling Line?
A: The model number of the Diagnostic Reagent Filling Line is PW-JSGX220.
Q: What is the place of origin for the Diagnostic Reagent Filling Line?
A: The Diagnostic Reagent Filling Line is manufactured in Qidong, Jiangsu.
Q: What certifications does the Diagnostic Reagent Filling Line have?
A: The Diagnostic Reagent Filling Line has CE, ISO, GMP, UL, TUV, and SGS certifications.
Q: What is the minimum order quantity for the Diagnostic Reagent Filling Line?
A: The minimum order quantity for the Diagnostic Reagent Filling Line is 1.
Q: What is the price of the Diagnostic Reagent Filling Line?
A: The price of the Diagnostic Reagent Filling Line is negotiable.
Q: What are the packaging details for the Diagnostic Reagent Filling Line?
A: The Diagnostic Reagent Filling Line is packaged in export standard wooden cases.
Q: What is the delivery time for the Diagnostic Reagent Filling Line?
A: The delivery time for the Diagnostic Reagent Filling Line is 60 working days.
Q: What are the payment terms for the Diagnostic Reagent Filling Line?
A: The payment terms for the Diagnostic Reagent Filling Line are TT.
Q: What is the supply ability for the Diagnostic Reagent Filling Line?
A: The supply ability for the Diagnostic Reagent Filling Line is 10pcs/month.
