Thermal Transfer Printer Reagent Filler and Capper for Pharmaceutical Applications

Product Description:

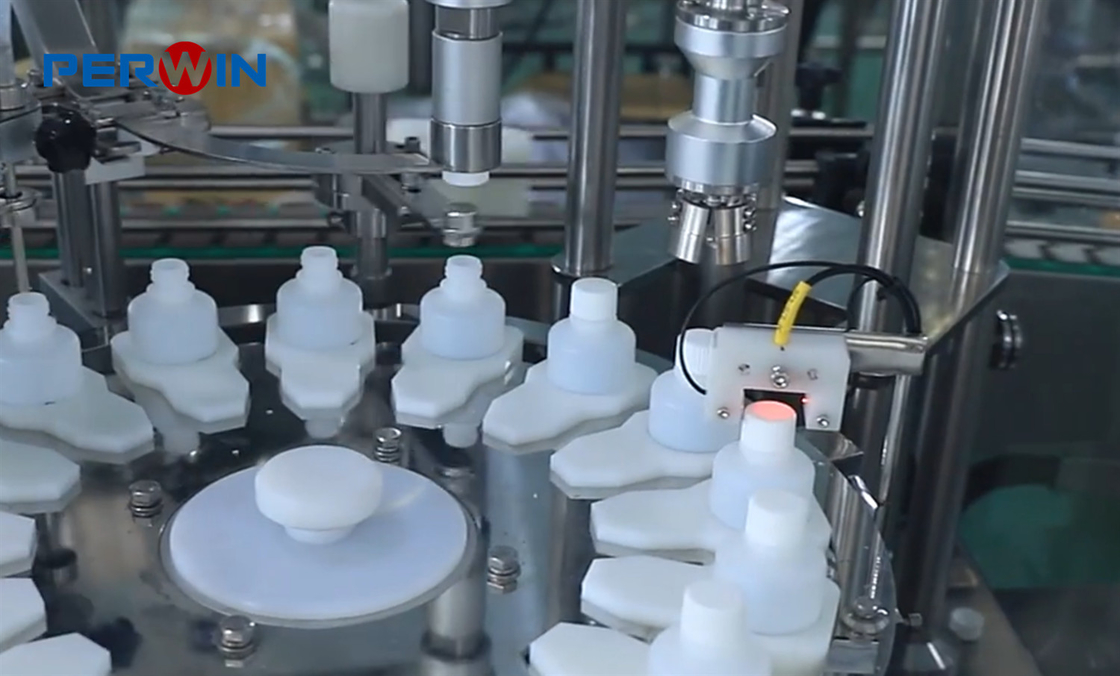

It is a biochemical reagent filling system designed for filling and capping biochemical reagents into bottles. It adopts bottle feeding method, manually put bottles into bottle holders. The material is SUS304 and 316L. The capping method is the cam-driven mechanical arm automatically take the cap and pre-cap it, and then turns it to the next station for the second time capping. The thermal transfer printer is 300dpi, can print letters, numbers, bar codes, etc. including label buffer mechanism and mounting bracket. The main low voltage electric parts are Schneider. This biochemical reagent filling line is suitable for filling and capping of biochemical reagents for various industries.

Features:

• Product Name: Diagnostic Reagent Filling Line
• Key functions: Double-station Follow-up Filling, Manipulator Automatic Cap Removal, Pre-capping and Capping Technology, Driven by Precision Cam Mechanism, Servo Technology Controls Capping Torque, Automatic Cap Sorting Unit and Soundproof Cover, Lifting Filling to Prevent Splashing
• Torque control: Servo Technology Control, Adjust the Torque Value in HMI
• After-sales Service: Provided
• Capping Method: The Cam-driven Mechanical Arm Automatically Take the Cap and Pre-cap It, and Then Turns It to the Next Station for the Second Time Capping
• Control System: PLC Bus Control, HMI
• Diagnostic reagent filling machine: Biochemistry reagent filler, Biochemical reagent filler

Technical Parameters:

Applications:

PERWIN's Diagnostic Reagent Filling Line is the perfect choice for filling and capping machines for biochemical reagents. It features an ABB motor, two sets of OEM peristaltic pumps with dual-channel pump head follow-up filling system, an SS304 frame with tempered glass doors, SUS304 and 316L material, an automatic cap sorting unit and soundproof cover, and a lifting filling system to prevent splashing. The servo technology of this machine also provides precise control over capping torque. All these features make it an ideal choice for diagnostic reagents.

This product is available in minimum order quantity of one. It is certified by CE, ISO, GMP, UL, TUV, and SGS. The price is negotiable and it comes in export standard wooden cases with delivery time of 60 working days. PERWIN also offers a supply ability of 10pcs/month.

Customization:

Brand Name: PERWIN
Model Number: PW-JYGX211
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month

Product Features:

• Capping method: The Cam-driven Mechanical Arm Automatically Take The Cap And Pre-cap It, And Then Turns It To The Next Station For The Second Time Capping
• Rotary conveyor line and clamping conveyor belt: Manual Bottle Loading Control Mechanism (two Sets Of Pneumatic Mechanisms). Lifting Conveyor Belt, Turning Module, Bottle Holder And Bottle Separation Mechanism. Bottle Holder Circulating And Bottle Conveying Mechanism
• Bottle output method: Intermittent Star Wheel Positioning, Mechanical Arm Realizes Automatic Separation Of Bottle And Holder, And Bottle Holder Is Recycled On The Conveyor Belt
• Key functions: Double-station Follow-up Filling. Manipulator Automatic Cap Removal, Pre-capping And Capping Technology, Driven By Precision Cam Mechanism. Servo Technology Controls Capping Torque. Automatic Cap Sorting Unit And Soundproof Cover. Lifting Filling To Prevent Splashing.
• Liquid supply level control : Controlled By The Host PLC. Peristaltic Pump And Weighing Module, Etc.

PERWIN's Diagnostic Reagent Filling Line is the perfect solution for your biochemistry reagent filling needs. This reagent filling capping machine is designed to provide a fast and efficient filling and capping process for all types of reagents. The machine features a cam-driven mechanical arm for automatic cap removal, pre-capping and capping. It also features a double-station follow-up filling, servo technology for controlling capping torque, an automatic cap sorting unit and a lifting filling mechanism to prevent splashing. The liquid supply level control is controlled by a host PLC, with a peristaltic pump and weighing module. The rotary conveyor line and clamping conveyor belt feature manual bottle loading control mechanisms with two sets of pneumatic mechanisms, a lifting conveyor belt, turning module, bottle holder and bottle separation mechanism, and bottle holder circulating and bottle conveying mechanism. The bottle output method is intermittent star wheel positioning, with a mechanical arm that realizes automatic separation of bottle and holder, and bottle holder recycled on the conveyor belt.

PERWIN's Diagnostic Reagent Filling Line is the perfect machine for your biochemistry reagent filling and capping needs. With its advanced features and superior build quality, this reagent filling line is sure to provide you with a reliable and efficient filling and capping process. So make sure to get your Diagnostic Reagent Filling Line from PERWIN today!
