Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-JYGX211
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Filling Heads: |
2 |
Filling System: |
2 Sets Of OEM Peristaltic Pumps, Dual-channel Pump Head Follow-up Filling System |
Pneumatic Components: |
SMC Or Festo |
Bottle Holder: |
Noise Reduction Design. 2 Bottles For One Holder. |
Labeling Machine: |
The Angle Of The Labeling Head Can Be Adjusted. The Conveying Mechanism Is Designed With Accessories For Positioning The Bottle. Automatic Rolling Label Mechanism. Shoulder Label Automatic Pressing Mechanism. |
Bottle Output Method: |
Intermittent Star Wheel Positioning, Mechanical Arm Realizes Automatic Separation Of Bottle And Holder, And Bottle Holder Is Recycled On The Conveyor Belt |
Filling Speed: |
25~40 Bottles/min |
Thermal Transfer Printer: |
300dpi, Can Print Letters, Numbers, Bar Codes, Etc. Including Label Buffer Mechanism And Mounting Bracket. |
Filling Heads: |
2 |
Filling System: |
2 Sets Of OEM Peristaltic Pumps, Dual-channel Pump Head Follow-up Filling System |
Pneumatic Components: |
SMC Or Festo |
Bottle Holder: |
Noise Reduction Design. 2 Bottles For One Holder. |
Labeling Machine: |
The Angle Of The Labeling Head Can Be Adjusted. The Conveying Mechanism Is Designed With Accessories For Positioning The Bottle. Automatic Rolling Label Mechanism. Shoulder Label Automatic Pressing Mechanism. |
Bottle Output Method: |
Intermittent Star Wheel Positioning, Mechanical Arm Realizes Automatic Separation Of Bottle And Holder, And Bottle Holder Is Recycled On The Conveyor Belt |
Filling Speed: |
25~40 Bottles/min |
Thermal Transfer Printer: |
300dpi, Can Print Letters, Numbers, Bar Codes, Etc. Including Label Buffer Mechanism And Mounting Bracket. |

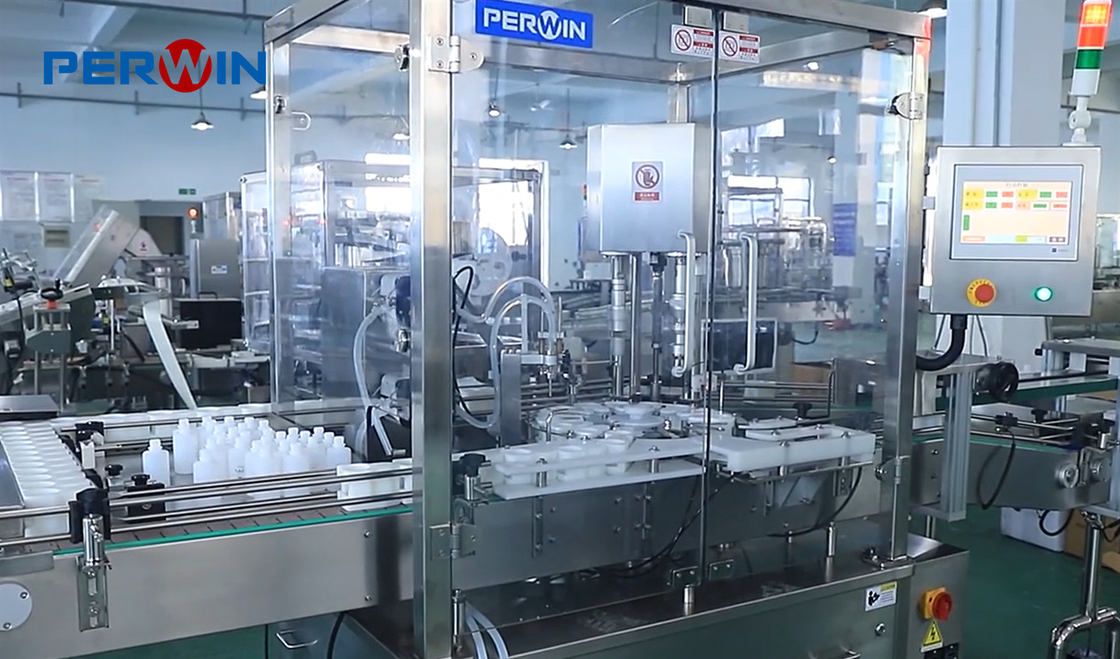

Diagnostic Reagent Filling Line is a biochemistry reagent filling capping labeling line that is developed to meet the needs of customers such as Abbott, Innovation Scientific and Toyobo. Its air pressure range is from 0.6 to 0.8Mpa. The bottle holder is designed with noise reduction in mind and it supports 2 bottles for one holder. It is controlled by Whole Line PLC Intelligent Linkage, Touch Screen Control and Counting Function. In addition, the capping method is based on Cam-driven Mechanical Arm, which can automatically take the cap and pre-cap it, and then turns it to the next station for the second time capping. All of these features make Diagnostic Reagent Filling Line a perfect choice for filling biochemistry reagents.
| Tech Parameter | Description |
|---|---|
| Bottle feeding method | Manually put bottles into bottle holders |
| Rejection function for quality control | Bottle without filling. Bottle without cap. Bottle with tilt cap. Bottle with loose cap. |
| Bottle output method | Intermittent star wheel positioning, mechanical arm realizes automatic separation of bottle and holder, and bottle holder is recycled on the conveyor belt |
| Labeling machine | The angle of the labeling head can be adjusted. The conveying mechanism is designed with accessories for positioning the bottle. Automatic rolling label mechanism. Shoulder label automatic pressing mechanism. |
| Bottle size | 20ml, 30ml, 60ml, 80ml, 100ml |
| Thermal transfer printer | 300dpi, can print letters, numbers, bar codes, etc. Including label buffer mechanism and mounting bracket. |
| Bottle holder | Noise reduction design. 2 bottles for one holder. |
| Material | SUS304 and 316L |
| After-sales service | Provided |
| Liquid supply level control | Controlled by the host PLC. Peristaltic pump and weighing module, etc. |
| Keywords | Reagent filler and capper, Diagnostic reagent filling machine, Biochemistry reagent filling machine |
The PERWIN PW-JYGX211 Diagnostic Reagent Filling Line is an advanced biochemistry reagent filler that is used for filling and capping of diagnostic reagents. It is certified by CE, ISO, GMP, UL, TUV, and SGS, and comes with a minimum order quantity of 1. The price of this machine is negotiable, and it is packed in export standard wooden cases for delivery, which takes around 60 working days. The payment terms are TT and the supply ability is 10pcs/month.
This machine is equipped with two filling heads and two bottles for one holder, and it has a noise reduction design. It has a rejection function for quality control which can detect bottle without filling, bottle without cap, bottle with tilt cap, and bottle with loose cap. It also has a one year warranty. The working flow includes filling, capping, labeling, and printing.
This Diagnostic Reagent Filling Line from PERWIN is highly efficient and reliable, and it is perfect for biochemistry reagent filling, biochemical reagent filling, and diagnostic reagent filling.
Biochemistry reagent filling machine, Biochemical reagent filler, Biochemistry reagent filling line, Diagnostic reagent filling machine, Diagnostic reagent filler, Diagnostic reagent filling line
We provide technical support and service for the Diagnostic Reagent Filling Line. Our experienced technicians are available to provide on-site installation and commissioning, as well as after-sales technical support and maintenance services.
Once the installation is completed, our technicians will provide product training to the users and ensure they are familiar with the equipment and its operation. They will also provide troubleshooting and maintenance services, including regular maintenance checks, component replacements, and system upgrades.
We offer a variety of service packages to meet the needs of our customers. Our standard service plans cover all parts and components, as well as labor and emergency services. We also offer customized plans and extended warranties for our customers.
