Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-7500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Warranty: |
1 Year |
Voltage: |
400V, Three Phase, 50~60hz |
Capping Method: |
Servo Technology Control Fixed-point Cap Closing. |
Bi-plates Filling: |
Servo Mechanism Orientation Unit. |
Dish Separating: |
The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology |
Filling Accuracy: |
±1~3% |
Power Source: |
Electric |
Dish Stacking: |
Integrated Servo Sinking And Stacking Unit |
Warranty: |
1 Year |
Voltage: |
400V, Three Phase, 50~60hz |
Capping Method: |
Servo Technology Control Fixed-point Cap Closing. |
Bi-plates Filling: |
Servo Mechanism Orientation Unit. |
Dish Separating: |
The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology |
Filling Accuracy: |
±1~3% |
Power Source: |
Electric |
Dish Stacking: |
Integrated Servo Sinking And Stacking Unit |

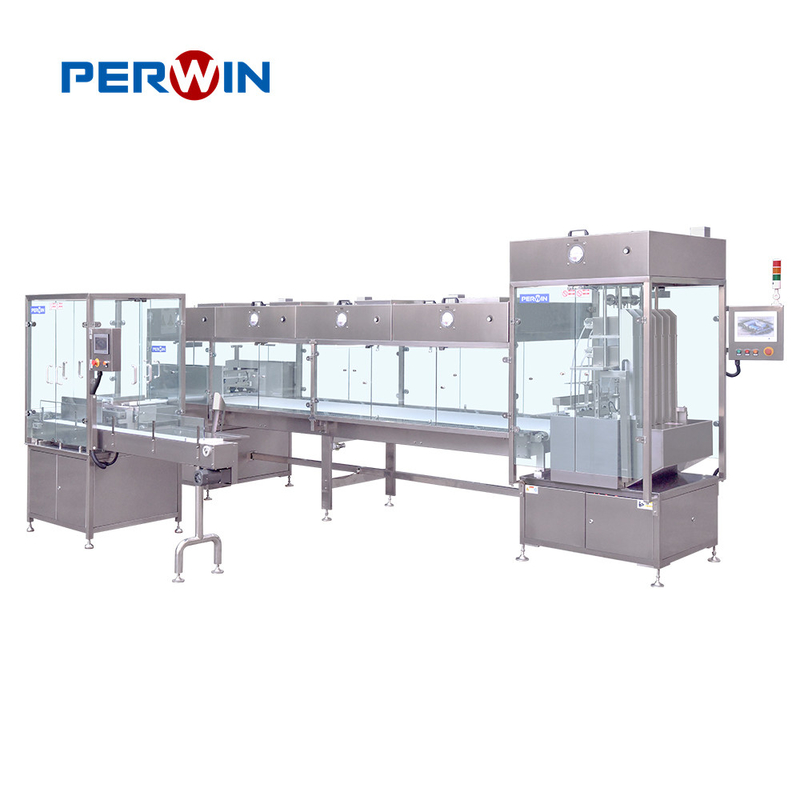

The Petri Dish Filling Machine is a high-quality, precision equipment designed to facilitate the filling of Petri dishes. It is equipped with a bi-plates filling system with a servo mechanism orientation unit, a sheep blood adding system with one peristaltic pump, blood bag storage rack, and exclusive FFU area, and a dish stacking unit with an integrated servo sinking and stacking unit. The machine is made of SUS304 and SUS316 material, and the noise level is ≤75dB. Its features include a special shelf with casters for placing the sheep blood, precise filling of the Petri dishes, and easy stacking. The Petri Dish Filling Machine is an ideal solution for laboratories, hospitals, and other scientific research and clinical institutions.
| Property | Specification |
|---|---|
| Dish stacking | Integrated Servo Sinking And Stacking Unit |
| Product specifications | For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish |
| Safety Protection | SS304 Frame, Tempered Glass |
| Power Source | Electric |
| Filling method | 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently. |
| Compressed air | 0.4~0.8Mpa |
| Warranty | 1 Year |
| Light | Lighting System In The Cooling Area Of The Whole Line |
| Production speed | Cooling For 3 Minutes, 3000Pieces/hour |
| Dish separating | The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology |
The PERWIN PW-PP6-7500 Petri Dish Filler is a highly efficient automation equipment designed for the filling of petri dishes. It is CE, ISO, GMP, UL, TUV, and SGS certified, ensuring high quality and safety standards. The minimum order quantity is 1 piece and the price is negotiable. It is delivered in export standard wooden cases, with a delivery time of 60 working days. Payment terms are TT, and 10 pieces per month is the supply ability. It is backed with a one-year warranty. The machine comes with a FFU for both the main machine and the sheep blood area.
The PERWIN PW-PP6-7500 Petri Dish Filler is suitable for hospitals and pharmaceutical companies. It has a weight of 1500 kgs and a format changing time of within 30 minutes, making it highly efficient and convenient.
Thanks to its features, the PERWIN PW-PP6-7500 Petri Dish Filler is the ideal choice for automating the filling of petri dishes. It is highly reliable and efficient, and can be used in a variety of applications.
PERWIN Petri Dish Filling Device PW-PP6-7500 is the perfect choice for your petri dish filling needs. It is produced with Qidong, Jiangsu standards and is certified by CE, ISO, GMP, UL, TUV, SGS. This machine has the ability to fill 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish with its 7.5kw power consumption and 1500kgs weight. The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology. The minimum order quantity is 1 and the price is negotiable. Delivery time is 60 working days and payment terms is TT. The packaging details is Export Standard Wooden Cases and the supply ability is 10pcs/month.
We provide technical support and service for our Petri Dish Filling Machine. Our knowledgeable support team is available to answer any questions you may have about the machine. We can provide troubleshooting assistance, as well as provide tips and advice on how to maintain the machine and perform any necessary repairs. We also offer maintenance and repair services for the Petri Dish Filling Machine, including replacing broken or worn-out parts.
If you need help with the Petri Dish Filling Machine, you can contact our technical support team via email, phone, or online chat. Our team is available 24/7 to provide you with the assistance you need. We are committed to providing our customers with the highest level of customer service and technical support.
