Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-7500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
FFU: |
For Main Machine And For Sheep Blood Area. |
Safety Protection: |
SS304 Frame, Tempered Glass |
Filling Volume: |
10~20ml |
Filling Method: |
6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently |
Weight: |
1500kgs |
Filling Needle Insulation: |
Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . |
Sheep Blood Adding System: |
With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
Voltage: |
400V, Three Phase, 50~60hz |
FFU: |
For Main Machine And For Sheep Blood Area. |
Safety Protection: |
SS304 Frame, Tempered Glass |
Filling Volume: |
10~20ml |
Filling Method: |
6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently |
Weight: |
1500kgs |
Filling Needle Insulation: |
Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . |
Sheep Blood Adding System: |
With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
Voltage: |
400V, Three Phase, 50~60hz |

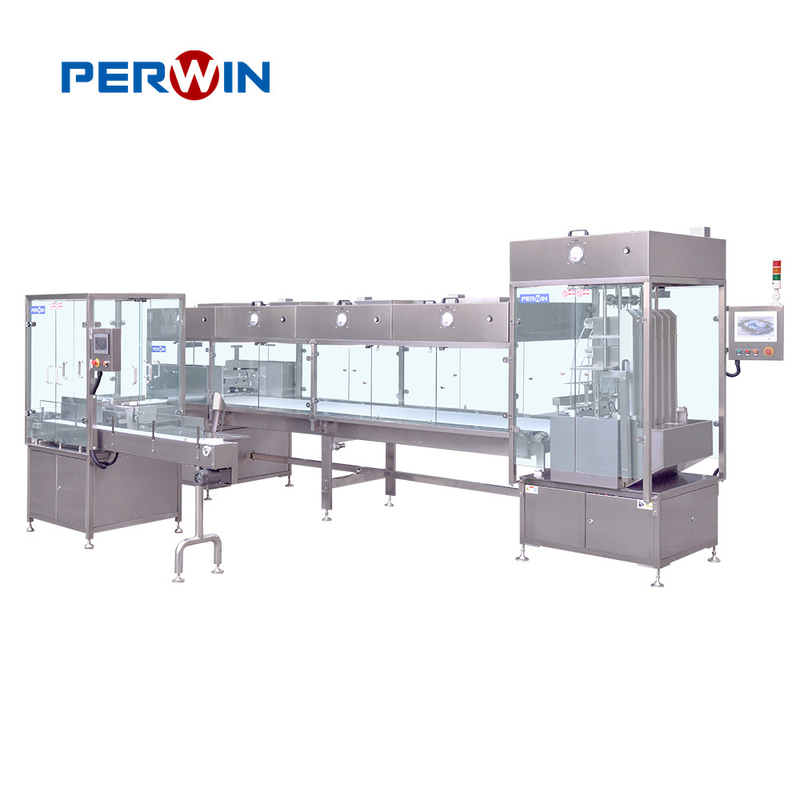

The Petri Dish Filling Machine is a highly automated, reliable, and efficient equipment for filling petri dish with high accuracy and precision. It is designed to meet the needs of laboratories, research institutions, and medical facilities with its easy-to-use, highly accurate, and reliable features. It is a compact, low-maintenance, and cost-effective solution for filling petri dish with various sizes such as 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, and 65mm Single Zone Dish.
The Petri Dish Filling Machine is powered by electricity and has a filling accuracy of ±1~3%, making it an ideal choice for laboratories and research institutions. It provides an integrated servo sinking and stacking unit for dish stacking, ensuring the accuracy and precision of the filling process. The machine also has a sheep blood adding system with one peristaltic pump, a blood bag storage rack, and an exclusive FFU area. The sheep blood is placed on a special shelf with casters for easy transportation.
The Petri Dish Filling Machine is the perfect solution for laboratories, research institutions, and medical facilities that require a reliable and efficient petri dish filling automation. It is designed to provide efficient, accurate, and cost-effective filling of petri dish with great accuracy and precision. It is easy to operate and requires minimal maintenance to ensure that it is running efficiently and accurately.
| Property | Value |
|---|---|
| Inkjet printing | The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt |
| Filling needle insulation | Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . (customer Can Choose To Maintain A Certain Temperature In The Silicone Tube As Well.) |
| Pure steam generator | 100kg/h |
| Dish separating | The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology |
| Production speed | Cooling For 3 Minutes, 3000Pieces/hour; |
| Power Consumption | 7.5kw |
| Filling volume | 10~20ml |
| FFU | For Main Machine And For Sheep Blood Area. |
| Operation Mode | Automatic |
| Sheep blood adding system | With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
PERWIN PW-PP6-7500 Petri Dish Filler is a great choice for those who require precision and accuracy in their Petri dish filling needs. This high quality filling equipment is manufactured in Qidong, Jiangsu, and meets CE, ISO, GMP, UL, TUV, and SGS standards. It comes with a minimum order quantity of one, and the price is negotiable. It is packed in export standard wooden cases, and delivery time is 60 working days. Payment terms are TT, and the supply ability is 10pcs/month.
The Dish Separation Mechanism, Upper Suction Cap Mechanism, and Cap Moving Mechanism all adopt servo technology. It supports 90mm Single Area Dish, 90mm Bi-plate Dish. The Filling Needle insulation is designed to prevent the liquid at the filling needle from cooling down too fast when the production is suspended, and prevent the liquid from solidifying and blocking the filling needle. The outlet temperature of the stainless steel filling needle can be controlled at 40~45 °. Customers can also choose to maintain a certain temperature in the silicone tube. The main machine length measures 7500mm, and it can reach a filling accuracy of ±1~3%.
Brand Name: PERWIN
Model Number: PW-PP6-7500
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
We offer technical support and services for our Petri Dish Filling Machine. Our technical support team is available 24/7 to answer any questions and help troubleshoot any issues related to the machine. We also offer a comprehensive maintenance program for the machine, including regular inspections and preventive maintenance services. Additionally, we provide a wide range of spare parts for the machine to ensure that it is always in peak working condition. Finally, we offer a full range of training services to ensure that operators are well-versed in the operation and maintenance of the machine.
