Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-7500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Dish Stacking: |
Integrated Servo Sinking And Stacking Unit |
Cooling Time: |
3~5min, Customer Can Set Accordingly. |
Material: |
SUS304 And SUS316 |
Dish Shaking Mechanism: |
Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off Dur |
Operation Mode: |
Automatic |
Inner Bag Packing: |
Automatic Packing Machine |
Weight: |
1500kgs |
Power Source: |
Electric |
Dish Stacking: |
Integrated Servo Sinking And Stacking Unit |
Cooling Time: |
3~5min, Customer Can Set Accordingly. |
Material: |
SUS304 And SUS316 |
Dish Shaking Mechanism: |
Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off Dur |
Operation Mode: |
Automatic |
Inner Bag Packing: |
Automatic Packing Machine |
Weight: |
1500kgs |
Power Source: |
Electric |

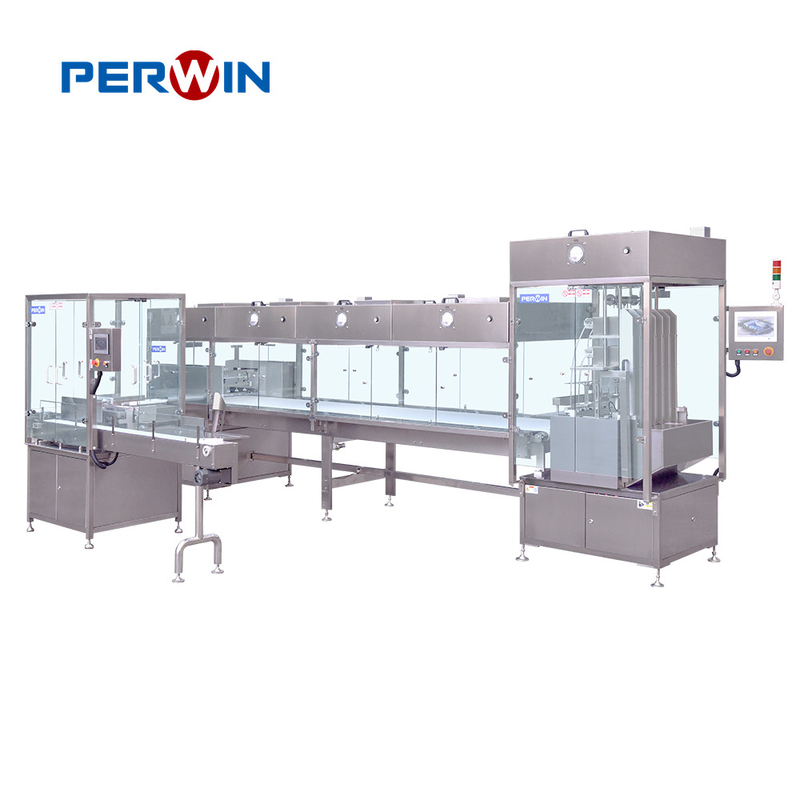

Petri Dish Filling Machine is a light, automatic operation mode device that is used to fill Petri dishes with various specifications such as 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, and 65mm Single Zone Dish. It is powered by electricity and equipped with six sets of peristaltic pumps, each driven by a separate stepping system assembled by Perwin. The Petri Dish Filling Robot, Petri Dish Filling Apparatus, and Petri Dish Filling Device can be operated on the host's touch screen, and the filling specification can be selected on the interface. The filling accuracy of each pump can be adjusted independently.
| Parameter | Value |
|---|---|
| Filling volume | 4ml~70ml |
| Dish shaking mechanism | Especially after adding sheep blood, the junction of the wall of the dish is clear and tidy, and the surface of the contents is smooth and clean. Increase the adhesion between the contents and the wall of the vessel, to ensure that it does not fall off during transportation, storage and use, and the quality is stable. |
| Main machine length | 7500mm |
| Material | SUS304 and SUS316 |
| Control System | PLC bus control, HMI |
| Power Source | Electric |
| Format changing time | Within 30mins |
| Weight | 1500kgs |
| Operation Mode | Automatic |
| Filling method | 6 sets of peristaltic pumps, each driven by a separate stepping system, assembled by Perwin. Operate on the host's touch screen, the filling specification can be selected on the interface, and the filling accuracy of each pump can be adjusted independently. |
PERWIN PW-PP6-7500 Petri Dish Filling Machine provides a perfect solution for automating the labor-intensive process of filling Petri dishes. Its design is based on the CE, ISO, GMP, UL, TUV, and SGS certifications, and it is made in Qidong, Jiangsu. The minimum order quantity is 1 unit, and the price is negotiable. It is shipped in an export standard wooden case, and it usually takes 60 working days for delivery. Payment terms are TT. The machine has a capacity of 10pcs/month, a weight of 1500kgs, and a format changing time of 30mins. It is equipped with an automatic packing machine for inner bag packing and a servo mechanism orientation unit for bi-plates filling. It also comes with a peristaltic pump, a blood bag storage rack, and an exclusive FFU area for sheep blood adding system. The sheep blood is placed on a special shelf (with casters).
PERWIN PW-PP6-7500 Petri Dish Filling Machine is a custom-made product with superior performance for filling petri dishes. It features a pure steam generator of 100kg/h, PLC Bus Control and HMI, filling volume of 4ml~70ml, compressed air of 0.4~0.8Mpa and integrated servo sinking and stacking unit. It has been certified with CE, ISO, GMP, UL, TUV, SGS. The minimum order quantity is 1, and the price is negotiable. The delivery time is 60 working days, and the packaging is export standard wooden cases. The supply ability is 10pcs per month and payment terms is TT.
We provide technical support and service for our Petri Dish Filling Machine. Our technical support team is available 24/7 to address any issues you may have with the machine.
We offer a variety of services to ensure your Petri Dish Filling Machine is running optimally. Our services include:
For more information about our technical support and service offerings, please contact us. We look forward to helping you get the most out of your Petri Dish Filling Machine.
