Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP3-15000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Material: |
SUS304 And SUS316 |
Operation Mode: |
Automatic |
Warranty: |
1 Year |
Lanes: |
6 Lanes |
Product Specifications: |
For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish |
Weight: |
1500kgs |
Filling Method: |
6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently |
Noise Level: |
≤75dB |
Material: |
SUS304 And SUS316 |
Operation Mode: |
Automatic |
Warranty: |
1 Year |
Lanes: |
6 Lanes |
Product Specifications: |
For 90mm Single Zone Dish, 90mm Bi-plates Dish, 65mm Contact Dish, 65mm Single Zone Dish |
Weight: |
1500kgs |
Filling Method: |
6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently |
Noise Level: |
≤75dB |
Petri Dish Filling Automation is a machine designed to fill Petri dishes with liquids quickly and accurately. It comes with 6 sets of peristaltic pumps, each driven by a separate stepping system, assembled by Perwin. Operate on the host's touch screen, the filling specification can be selected on the interface, and the filling accuracy of each pump can be adjusted independently. A lighting system is built in the cooling area of the whole line to ensure the safety and accuracy of the operation. An automatic packing machine is used to pack the finished products with inner bags, and the inkjet printing holes at the bottom of the Petri dish are reserved in the conveyor belt. The machine is covered with a 1 year warranty.
| Parameters | Details |
|---|---|
| Changeover parts | 90mm Single Area Dish, 90mm Bi-plate Dish |
| Cooling time | 7min, Customer Can Set Accordingly. |
| Compressed air | 0.4~0.8Mpa |
| Production speed | Cooling For 7 Minutes, 5000Pieces/hour; |

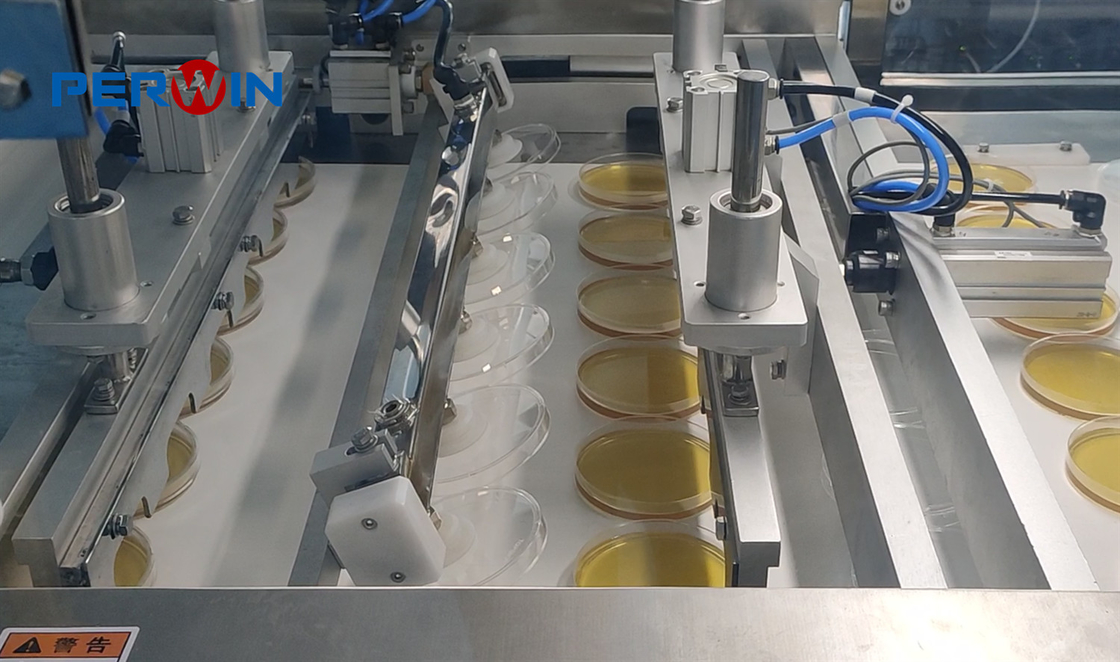

| Inkjet printing | The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt |
| Material | SUS304 And SUS316 |
| Light | Lighting System In The Cooling Area Of The Whole Line |
| Preparation tank | 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific Requirements Are As Follows.) Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Therefore, Jars Should Be Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To 38-45°C And Hold This Temperature Steady For At Least 8 Hours. With Fluid Input Port The Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels, Say These Are The Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A Specific Few. |
| Dish stacking | Integrated Servo Sinking And Stacking Unit |
| Inner bag packing | Automatic Packing Machine |
The PERWIN PW-PP3-15000 Petri Dish Filling Machine is a top-of-the-line piece of equipment designed for a variety of applications. With a certified CE, ISO, GMP, UL, TUV, and SGS, it is designed to meet the highest standards for safety and quality. The minimum order quantity is one, and the price is negotiable. It comes packaged in an export standard wooden case for optimal storage and delivery. The estimated delivery time is 60 working days, and payment terms are TT. There is a supply capacity of 10 pieces per month, and a one-year warranty is provided for all products.
The PERWIN PW-PP3-15000 Petri Dish Filling Machine is equipped with several advanced features. The dish separation mechanism, upper suction cap mechanism, and cap moving mechanism all adopt servo technology for precise and efficient operation. Additionally, the integrated servo sinking and stacking unit makes it easy to stack petri dishes, while the 30L, 60L, and 100L agar sterilization reactors per line provide the necessary supplies for agar sterilization. The capping method is servo technology control fixed-point cap closing, which ensures accurate and consistent results.
The PERWIN PW-PP3-15000 Petri Dish Filling Machine is the perfect tool for laboratories and research facilities looking to automate the petri dish filling process. With its advanced features and reliable performance, it is sure to provide years of reliable service.
We offer a range of technical support and service solutions for our Petri Dish Filling Machine. Our expert team is available to provide assistance with installation, maintenance, and troubleshooting. We also offer remote support and online tutorials to help you get the most out of your machine.
Our comprehensive after-sales service includes a one-year warranty on all parts and labor. We also offer extended warranties and maintenance contracts to ensure your machine is running smoothly for years to come.
If you ever need help or have any questions about your Petri Dish Filling Machine, please don't hesitate to contact us. We are always happy to help!
