Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-10000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
PLC: |
SIEMENS From Germany |
Light: |
Install 4 Sets Of Lighting On The Main Line |
Filling Needle Insulation: |
Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . |
Operation Mode: |
Automatic |
Bi-plates Filling: |
Servo Mechanism Orientation Unit. |
Pure Steam Generator: |
100kg/h |
Sheep Blood Adding System: |
With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
Safety Protection: |
SS304 Frame, Tempered Glass |
PLC: |
SIEMENS From Germany |
Light: |
Install 4 Sets Of Lighting On The Main Line |
Filling Needle Insulation: |
Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . |
Operation Mode: |
Automatic |
Bi-plates Filling: |
Servo Mechanism Orientation Unit. |
Pure Steam Generator: |
100kg/h |
Sheep Blood Adding System: |
With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
Safety Protection: |
SS304 Frame, Tempered Glass |

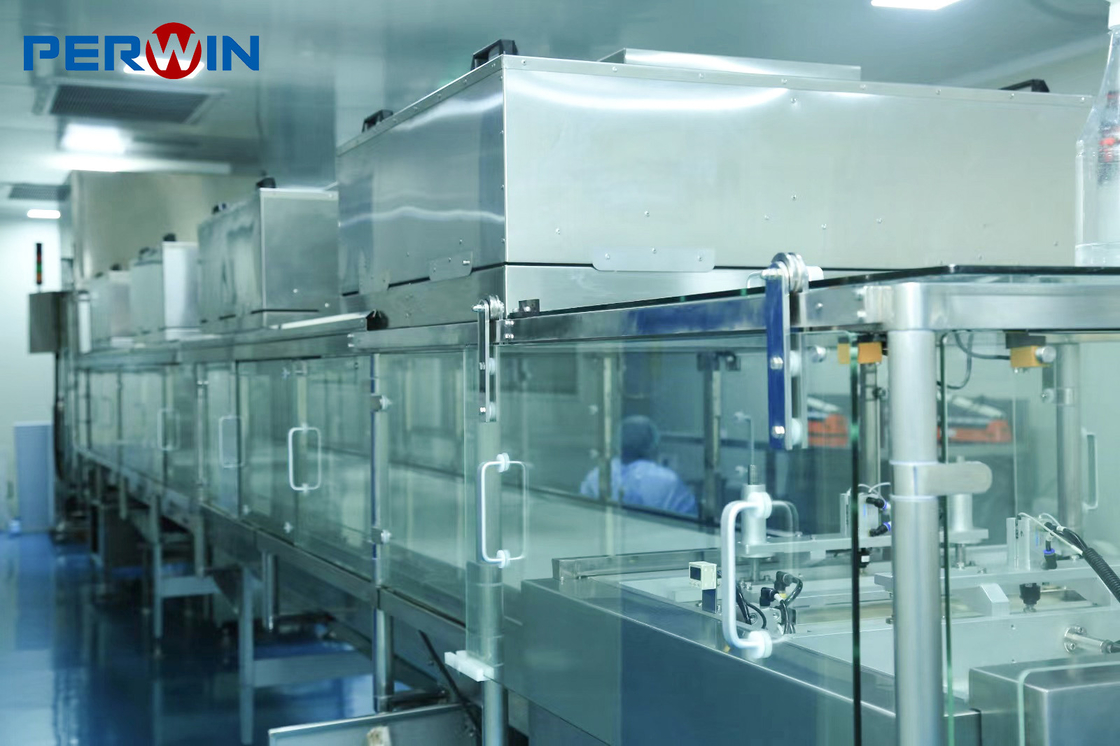

Petri Dish Filling Machine is a specialized device for filling Petri dishes. It is equipped with a servo technology control fixed-point cap closing system, which provides a 1 year warranty. The 90mm single-zone dish adopts a 6-station stacking method, the 90mm dual-zone dish uses a 3-station stacking method and the 140mm single-zone dish uses a 3-station stacking method. Each package is packed in a stack of 10 pieces (customers can set the number of stacking layers themselves). It is designed with a box and an additional safety isolation cover. The total weight of the machine is 2000kgs, and it is integrated with a servo sinking and stacking unit.
| Paramters | Description |
|---|---|
| Changeover parts | Equipped with Three Other Specifications. 90mm Double-zone Dish And 140mm Single Zone Dish. |
| Filling method | 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently. |
| Product specifications | 90mm Plates, 90mm Bi-plates, 150mm Plates |
| Compressed air | 0.4~0.8Mpa |
| Operation Mode | Automatic |
| Capping method | Servo Technology Control Fixed-point Cap Closing. |
| Safety Protection | SS304 Frame, Tempered Glass |
| Format changing time | Within 30mins |
| Dish stacking | Integrated Servo Sinking And Stacking Unit |
| Power Source | Electric |
PERWIN PW-PP6-10000 Petri Dish Filling Machine is the perfect apparatus for filling Petri dishes in a fast and efficient way. It meets the CE, ISO, GMP, UL, TUV and SGS certification standards. Composed of a pure steam generator of 100kg/h, a SIEMENS PLC from Germany, and a servo mechanism orientation unit, it is capable of filling up to 10 Petri dishes per month. With a main machine length of 10000mm, it is perfect for a wide range of applications in the laboratory and medical research fields. It is easy to operate and maintain, and comes with a minimum order quantity of 1 and a negotiable price. Its top-quality export standard wooden cases guarantee the safe delivery of the product.
The PERWIN PW-PP6-10000 Petri Dish Filling Machine is the solution for filling Petri dishes quickly and accurately. It is perfect for laboratories, medical research, and a wide range of other applications. Its top-quality components and design are guaranteed to last for years, making it the perfect choice for any laboratory or medical research center.
PERWIN Petri Dish Filling Machine is the perfect solution for your Petri Dish Filling Mechanism, Petri Dish Filling Robot and Petri Dish Filling Equipment needs. Our machine is equipped with 6 sets of peristaltic pumps, each driven by a separate stepping system, assembled by Perwin. It operates on the host's touch screen and the filling specification can be selected on the interface. The filling accuracy of each pump can be adjusted independently and the format changing time is within 30mins. Furthermore, the filling needle insulation prevents the liquid at the filling needle from cooling down too fast when the production is suspended and prevents the liquid from solidifying and blocking the filling needle. The outlet temperature of the stainless steel filling needle can be controlled at 40~45° and customers can choose to maintain a certain temperature in the silicone tube as well. The main machine length is 10000mm and the filling volume is 20ml~25ml.
