Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-10000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Pure Steam Generator: |
100kg/h |
Material: |
Stainless Steel |
FFU: |
A Total Of 8 Sets Of FFU, Covering The Entire Process Of The Petri Dish Line From Filling To Closing, One Of Which Is Used For The Sheep Blood Adding Station. |
Filling Method: |
6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently |
Light: |
Install 4 Sets Of Lighting On The Main Line |
Inner Bag Packing: |
Automatic Packing Machine |
Safety Protection: |
SS304 Frame, Tempered Glass |
Noise Level: |
≤75dB |
Pure Steam Generator: |
100kg/h |
Material: |
Stainless Steel |
FFU: |
A Total Of 8 Sets Of FFU, Covering The Entire Process Of The Petri Dish Line From Filling To Closing, One Of Which Is Used For The Sheep Blood Adding Station. |
Filling Method: |
6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently |
Light: |
Install 4 Sets Of Lighting On The Main Line |
Inner Bag Packing: |
Automatic Packing Machine |
Safety Protection: |
SS304 Frame, Tempered Glass |
Noise Level: |
≤75dB |

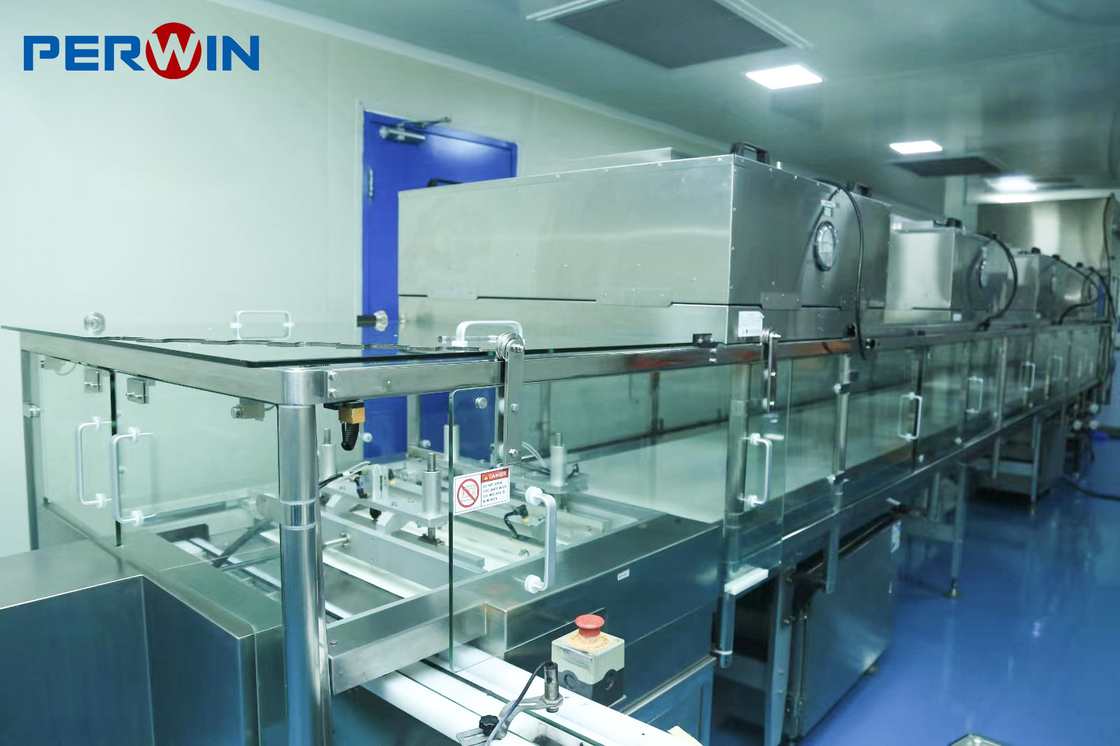

The Petri Dish Fill Machine is a comprehensive mechanism for filling Petri dishes. It is a fully automated apparatus that utilizes advanced PLC Bus Control and HMI to achieve precise filling volumetric accuracy. The filling volumes range from 20ml to 25ml. It is equipped with a total of 8 sets of FFUs which cover the entire process of the Petri dish line from filling to closing, including a Sheep Blood Adding Station. The capping method uses servo technology to precisely control the fixed-point cap closing. The filling accuracy is ±1~3%.
| Technical Parameter | Description |
|---|---|
| Preparation tank | 30L, 60L And 100L Agar Sterilization Reactors Per Line Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With Or Without Blood And/or Supplements. Thermometer Should Be Of The Highest Accuracy, The Mixer Should Have Multiple Levels. |
| Filling volume | 20ml~25ml |
| Cooling time | 5min, Customer Can Set Accordingly. |
| Bi-plates filling | Servo Mechanism Orientation Unit. |
| PLC | SIEMENS From Germany |
| Dish stacking | Integrated Servo Sinking And Stacking Unit |
| Filling Accuracy | ±1~3% |
| Control System | PLC Bus Control, HMI |
| Filling method | 6 Sets Of Peristaltic Pumps, Each Driven By A Separate Stepping System, Assembled By Perwin. Operate On The Host's Touch Screen, The Filling Specification Can Be Selected On The Interface, And The Filling Accuracy Of Each Pump Can Be Adjusted Independently. |
| Format changing time | Within 30mins |
| Keywords | Petri Dish Filling System, Petri Dish Filling Equipment, Petri Dish Fill Machine |
Brand Name: PERWIN
Model Number: PW-PP6-10000
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Main machine length: 10000mm
Dish separating: The Dish Separation Mechanism, Upper Suction Cap Mechanism, And Cap Moving Mechanism All Adopt Servo Technology
Capping method: Servo Technology Control Fixed-point Cap Closing.
Format changing time: Within 30mins
PLC: SIEMENS From Germany
Features of Petri Dish Filling Equipment:
PERWIN's Petri Dish Filling Equipment is a reliable and efficient solution for the filling of Petri dishes. It is equipped with a high-precision filling control system, which ensures accurate filling and no spillage. The compact and light design makes it easy to operate and maintain. It is suitable for all types of Petri dishes and is the perfect choice for your laboratory.
We provide technical support and service for our Petri Dish Filling Machine. Our team of experienced technicians can help you troubleshoot any issues you may have with the machine and provide you with advice on maintenance and setting up the machine.
We provide technical support via telephone and email. Our technical support team can answer any questions you may have about the machine and provide advice on how to get the most out of it.
Our service team can provide regular maintenance for your Petri Dish Filling Machine. We can check for any wear and tear and advise you on the best way to keep your machine running smoothly.
We can also provide setup services for your Petri Dish Filling Machine. Our technicians can help you get the machine set up correctly and ensure that it is running smoothly.
