Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-10000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Compressed Air: |
0.4~0.8Mpa |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Format Changing Time: |
Within 30mins |
Cooling Time: |
5min, Customer Can Set Accordingly. |
Filling Needle Insulation: |
Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . |
Product Specifications: |
90mm Plates, 90mm Bi-plates, 150mm Plates |
Filling Speed: |
4000~4500dishes/hour |
Compressed Air: |
0.4~0.8Mpa |
Warranty: |
1 Year |
Material: |
Stainless Steel |
Format Changing Time: |
Within 30mins |
Cooling Time: |
5min, Customer Can Set Accordingly. |
Filling Needle Insulation: |
Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . |
Product Specifications: |
90mm Plates, 90mm Bi-plates, 150mm Plates |
Filling Speed: |
4000~4500dishes/hour |

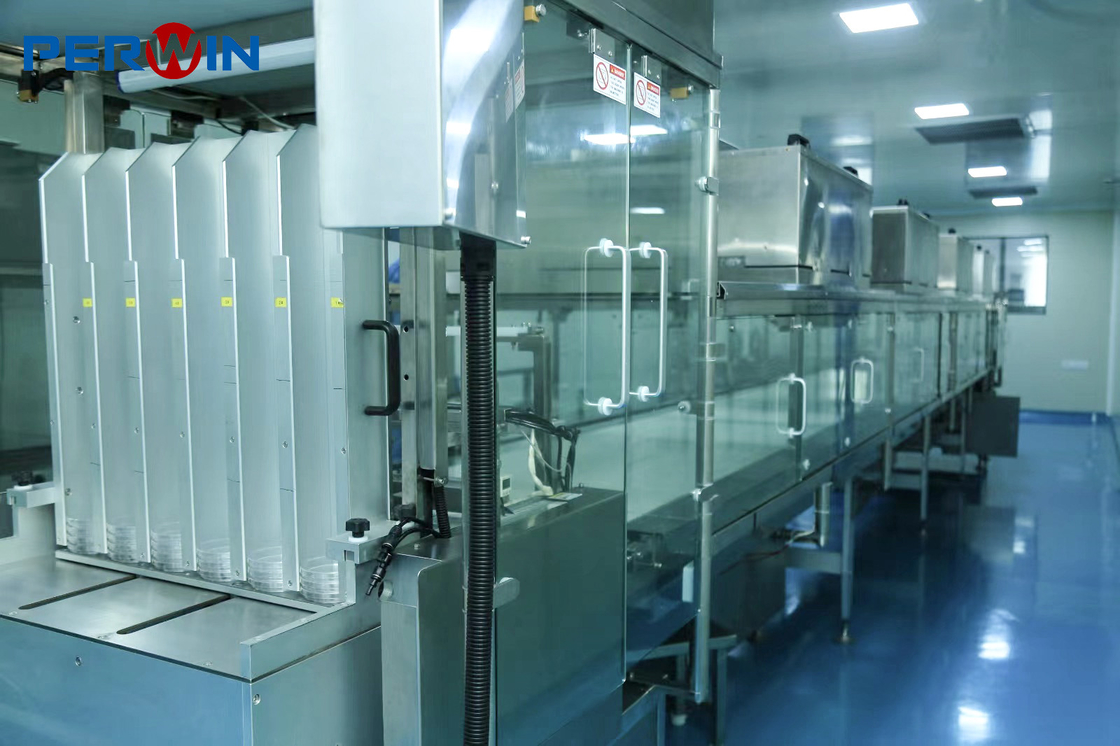

The Petri Dish Fill Machine is an automated solution for filling Petri dishes quickly and easily. It utilizes compressed air of 0.4~0.8Mpa to fill Petri dishes with a volume of 20ml~25ml. The machine is equipped with three other specifications of changeover parts - 90mm double-zone dish and 140mm single zone dish - and comes with 4 sets of lighting on the main line. Additionally, the dish shaking mechanism is servo motor controlled, allowing for precise and efficient filling of the Petri dishes.
The Petri Dish Fill Machine is the perfect solution for automating Petri dish filling. It is fast, reliable, and allows for precise control over the filling process. Its compact design and ease of use make it a great choice for any laboratory or medical facility.
Whether you are looking for a Petri dish filling automation solution or a reliable and accurate way to fill Petri dishes, the Petri Dish Fill Machine is the perfect choice. With its advanced features, including compressed air, filling volume, changeover parts, light, and dish shaking mechanism, it is sure to meet all of your needs for Petri dish filling automation.
| Parameter | Value |
|---|---|
| Dish shaking mechanism | Servo Motor Control |
| Pure steam generator | 100kg/h |
| Weight | 2000kgs |
| Product specifications | 90mm Plates, 90mm Bi-plates, 150mm Plates |
| Noise Level | ≤75dB |
| Material | Stainless Steel |
| PLC | SIEMENS From Germany |
| Light | Install 4 Sets Of Lighting On The Main Line |
| Filling needle insulation | Prevent The Liquid At The Filling Needle From Cooling Down Too Fast When The Production Is Suspended, And Prevent The Liquid From Solidifying And Blocking The Filling Needle. Control The Outlet Temperature Of The Stainless Steel Filling Needle At 40~45 ° . (customer Can Choose To Maintain A Certain Temperature In The Silicone Tube As Well.) |
| Filling volume | 20ml~25ml |
PERWIN PW-PP6-10000 Petri Dish Filling Machine is a high-end automation solution for filling Petri Dishes, designed and manufactured in Qidong, Jiangsu. It is CE, ISO, GMP, UL, TUV, SGS certified and comes with a minimum order quantity of 1. The price is negotiable and packaging can be customized as per Export Standard Wooden Cases. The delivery time is around 60 working days and Payment Terms can be TT. It has a production capacity of 10pcs/month. The power source of this machine is electric and the power consumption is 7.5kw. The control system is PLC Bus Control, HMI and the main machine length is 10000mm. It also features a Servo Mechanism Orientation Unit for bi-plates filling.
PERWIN Petri Dish Filling System provides customers with a reliable, safe and efficient petri dish filling solution. Our Petri Dish Filling Machine is designed with advanced inkjet printing technology, allowing you to accurately control the diameter and depth of the holes at the bottom of the petri dish. The inner bag packing and filling needle insulation can prevent the liquid from cooling down too fast and solidifying, ensuring the smooth operation of the production process. The servo mechanism orientation unit of the bi-plates filling system is designed to ensure the accuracy and stability of the filling process. Our Petri Dish Filling System is certified to CE, ISO, GMP, UL, TUV, SGS standards, and has a minimum order quantity of 1 unit with a 60 working days delivery time. Contact us to get a competitive price today!
We offer a range of technical support and services for our Petri Dish Filling Machine:
