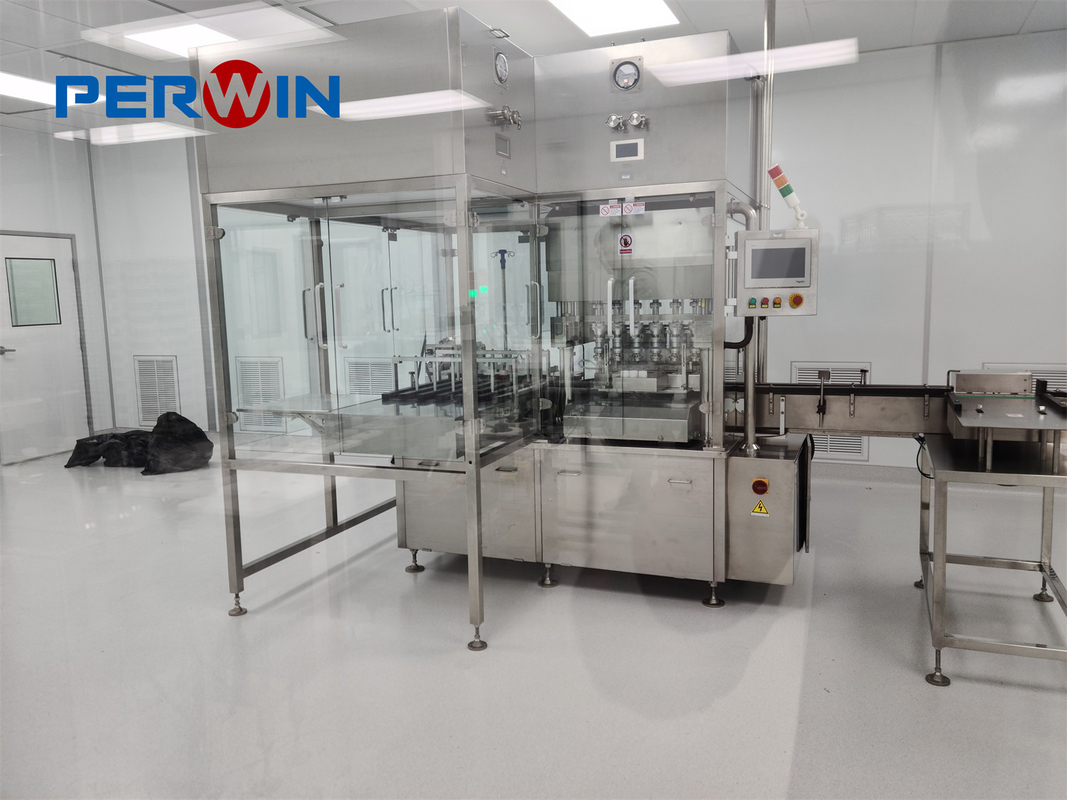

220V 50Hz Heat Shrinking Machine For Culture Media Vacuum Bottle Filling

Product Description:

The filling accuracy of the machine is ≦±1%, which ensures that the exact amount of cellular culturing medium is filled into each bottle. This high level of accuracy is achieved through the use of advanced technology and precise sensors that monitor the filling process.
The capping torque control system is another key feature of the Cellular Culture Medium Filling Machine. Each capping unit is controlled by a servo motor, and the capping torque of the servo motor is preset. When capping, if the preset capping torque is not reached, the servo motor will automatically tighten the cap to the preset torque. This ensures that each bottle is tightly sealed and prevents any leaks or contamination.
The touch screen of the machine is sourced from Fuji in Japan, which is known for its high-quality and reliable touch screens. The touch screen interface is easy to use and allows operators to control the filling and capping process with ease.
The bottle separating method used in the machine is a reciprocating bottle feeding module driven by a servo motor. This allows for smooth and efficient bottle feeding, which reduces the risk of spills or errors during the filling process.
The capping head lift system is another important feature of the machine. A set of high-power servo motors control the capping head lift, which ensures that the capping process is smooth and efficient. This helps to reduce the risk of spills or leaks during the filling process, which is critical when working with cellular culturing media.
In summary, the Cellular Culturing Medium Filler is a highly advanced and reliable filling machine that is perfect for laboratories and research facilities that require a precise and efficient way to fill their cellular culturing media. With its high level of accuracy, capping torque control, touch screen interface, and efficient bottle feeding and capping systems, this machine is the ideal choice for anyone looking for a reliable and efficient way to fill their cellular culturing media.

Features:

• Product Name: Media Filling Machine
• Bottle separating method: Reciprocating Bottle Feeding Module Driven By Servo Motor
• Decontamination area: The High-efficiency Filter HEPA Coverage Scheme Of The Filling And Capping Machine Is Divided Into Three Areas Q1, Q2, Q3, Equipped With A Separate 100-level Laminar Flow Hood, And The Wind Pressure Can Be Adjusted To : Q3>Q2>Q1
• Buffer tank (bag): 30L Buffer Tank Or Buffer Bag, Equipped With An Automatic Weighing System, Keeps The Six-channel Liquid Output From The Buffer Tank (bag) At A Relatively Stable Flow Rate, And The Liquid Flow And Flow Rate Supplied To The Peristaltic Pump Are Stable To Ensure The Stability Of The Peristaltic Pump Filling Accuracy
• Capping method: Six Groups Of Capping Units Controlled By Servo Motors, Each Group Is Controlled By Servo Motors Individually, Three-jaw Capping Head. The Bottle Cap Can Be Unscrewed In The Reverse Direction And Screwed On In The Forward Direction
• Security: SS304+ Tempered Glass. Alarm Information, Door Open Shutdown; Emergency Stop Device, Etc.

Cellular culture media filler, Cell culturing medium filling machine, Culture medium filling machine

Technical Parameters:

Applications:

The PERWIN PW-ZMGX660 is an ideal cellular culture media filler for numerous applications. It is perfect for applications that require high filling accuracy, and precision. The filling nozzle lifting is a set of high-power servo motor control, which ensures that the filling is done with precision and accuracy. The capping torque control is also precise and accurate. Each capping unit is controlled by a servo motor, and the capping torque of the servo motor is preset. When capping, if the preset capping torque is not reached, the servo motor will automatically tighten the cap to the preset torque.
The PERWIN PW-ZMGX660 cellular culture media filler is perfect for filling media in a variety of applications. It is a perfect fit for filling cell culture media, which is used in research and development, and in the production of biopharmaceuticals. The machine is also ideal for filling cellular culture media, which is used in cell culture applications. The buffer tank (bag) of 30L equipped with an automatic weighing system keeps the six-channel liquid output from the buffer tank (bag) at a relatively stable flow rate, and the liquid flow and flow rate supplied to the peristaltic pump are stable to ensure the stability of the peristaltic pump filling accuracy.
The PERWIN PW-ZMGX660 is a highly efficient cellular culture media filler that is perfect for a wide range of applications. It is designed to cater to different media filling needs, and it is a perfect fit for applications that require high filling accuracy and precision. Whether you are in the research and development field or in the production of biopharmaceuticals, the PERWIN PW-ZMGX660 cellular culture media filler is an ideal choice for you.

Customization:

Our PW-ZMGX660 model is manufactured in Qidong, Jiangsu and comes with CE, ISO, GMP, UL, TUV, and SGS certifications. The minimum order quantity is 1, and the price is negotiable. The machine is packaged in export standard wooden cases and has a delivery time of 60 working days. Payment terms are TT, and we have a supply ability of 10pcs/month.
The machine's measurement method uses six sets of precision pump heads driven by servo motors. The filling volume can be set and adjusted on the touch screen. The bottle separating method is a reciprocating bottle feeding module driven by a servo motor. The buffer tank (bag) has a capacity of 30L and is equipped with an automatic weighing system to keep a stable flow rate for the six-channel liquid output. The filling accuracy is less than or equal to ±1%. The touch screen is from Fuji, Japan.
Choose PERWIN for your Cellular Culture Medium Filling Machine needs. Our customizable PW-ZMGX660 model is designed to meet your unique production requirements.

Packing and Shipping:

Product Packaging:

• Dimensions: 48” x 40” x 60”
• Weight: 500 lbs
• Materials: Heavy-duty corrugated cardboard box, foam inserts, plastic wrapping

Shipping:

• Shipping method: LTL Freight
• Shipping weight: 550 lbs
• Shipping dimensions: 48” x 40” x 70”
• Shipping cost: Please contact us for a quote
