Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZMGX660
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Power Supply: |
Filling And Capping Machine: 220v 50Hz. Heat Shrinking Machine And Labeling Machine: 380v 50Hz |
Level Control: |
Equipped With Weighing Module |
Filling Nozzle Lifting: |
A Set Of High-power Servo Motor Control |
Security: |
SS304+ Tempered Glass. Alarm Information, Door Open Shutdown; Emergency Stop Device, Etc. |
Decontamination Area: |
The High-efficiency Filter HEPA Coverage Scheme Of The Filling And Capping Machine Is Divided Into Three Areas Q1, Q2, Q3, Equipped With A Separate 100-level Laminar Flow Hood, And The Wind Pressure Can Be Adjusted To : Q3>Q2>Q1 |
Capping Head Lift: |
A Set Of High-power Servo Motor Control |
Servo Motor: |
Delta From China |
Buffer Tank (bag): |
30L Buffer Tank Or Buffer Bag, Equipped With An Automatic Weighing System, Keeps The Six-channel Liquid Output From The Buffer Tank (bag) At A Relatively Stable Flow Rate, And The Liquid Flow And Flow Rate Supplied To The Peristaltic Pump Are Stable To Ens |
Power Supply: |
Filling And Capping Machine: 220v 50Hz. Heat Shrinking Machine And Labeling Machine: 380v 50Hz |
Level Control: |
Equipped With Weighing Module |
Filling Nozzle Lifting: |
A Set Of High-power Servo Motor Control |
Security: |
SS304+ Tempered Glass. Alarm Information, Door Open Shutdown; Emergency Stop Device, Etc. |
Decontamination Area: |
The High-efficiency Filter HEPA Coverage Scheme Of The Filling And Capping Machine Is Divided Into Three Areas Q1, Q2, Q3, Equipped With A Separate 100-level Laminar Flow Hood, And The Wind Pressure Can Be Adjusted To : Q3>Q2>Q1 |
Capping Head Lift: |
A Set Of High-power Servo Motor Control |
Servo Motor: |
Delta From China |
Buffer Tank (bag): |
30L Buffer Tank Or Buffer Bag, Equipped With An Automatic Weighing System, Keeps The Six-channel Liquid Output From The Buffer Tank (bag) At A Relatively Stable Flow Rate, And The Liquid Flow And Flow Rate Supplied To The Peristaltic Pump Are Stable To Ens |
The power supply needed for the Filling and Capping Machine is 220v 50Hz, while the Heat Shrinking Machine and Labeling Machine require 380v 50Hz. The machine is equipped with a touch screen from Fuji, which is a reliable and user-friendly interface for the operator. The filling nozzle lifting is controlled by a set of high-power servo motors, ensuring precise and stable filling of the cellular culture media into the bottles.
The capping method of the Cellular Culture Media Filler is advanced and efficient. It features six groups of capping units controlled by servo motors, with each group individually controlled by servo motors. The three-jaw capping head ensures that the bottle cap can be unscrewed in the reverse direction and screwed on in the forward direction, providing a secure seal for the cellular culturing medium.
Our Cellular Culturing Medium Filling Machine is an essential component for laboratories and biotech companies that require a reliable and efficient way to fill cellular culture media. The machine's advanced features and high precision make it ideal for filling various types of media and ensures a consistent and sterile final product.
The Media Filling Machine is a Cell culturing media filler, Cellular culturing medium filler that features a touch screen from Fuji Japan, buffer tank (bag) with an automatic weighing system, servo motor from Delta China, PLC from Siemens Germany, and can fill bottles with a specification of 125ml and 500ml.
| Compressed air | 0.4~0.7Mpa |
| Touch screen | Fuji From Japan |
| Decontamination area | The High-efficiency Filter HEPA Coverage Scheme Of The Filling And Capping Machine Is Divided Into Three Areas Q1, Q2, Q3, Equipped With A Separate 100-level Laminar Flow Hood, And The Wind Pressure Can Be Adjusted To : Q3>Q2>Q1 |
| Capping torque control | Each Capping Unit Is Controlled By A Servo Motor, And The Capping Torque Of The Servo Motor Is Preset. When Capping, If The Preset Capping Torque Is Not Reached, The Servo Motor Will Automatically Tighten The Cap To The Preset Torque |
| Security | SS304+ Tempered Glass. Alarm Information, Door Open Shutdown; Emergency Stop Device, Etc. |

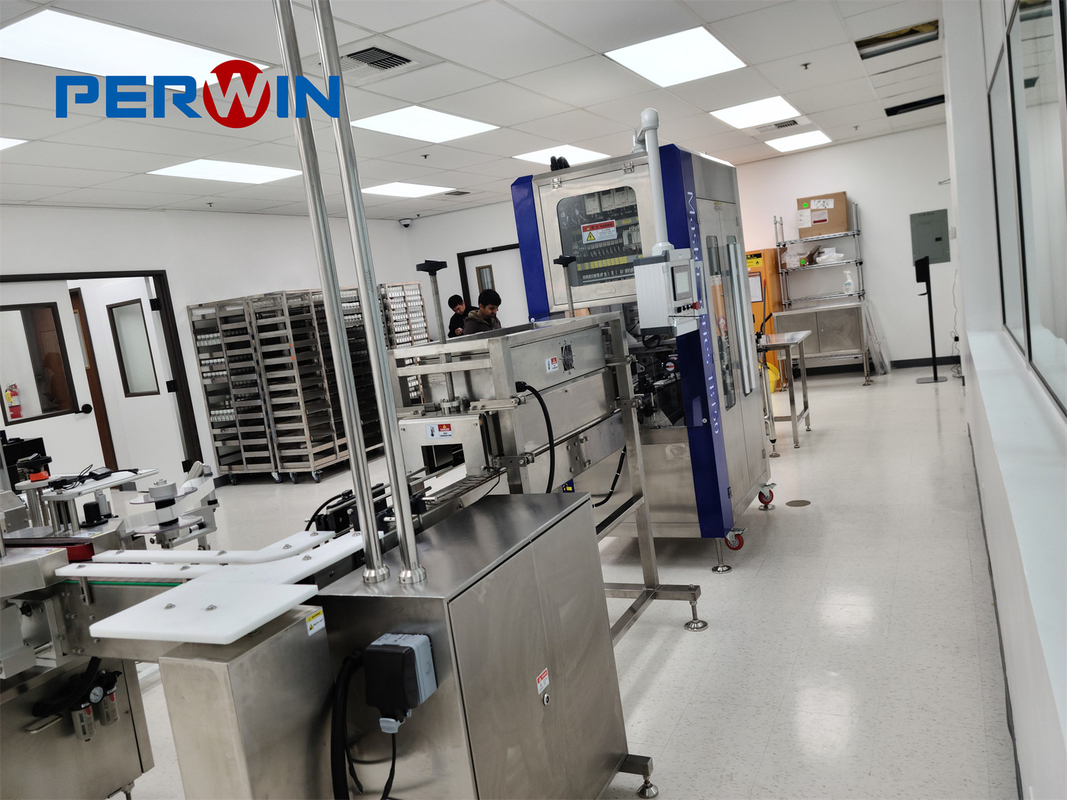

| Production line composition | Square Bottle 6 Heads Filling And Capping Machine → Automatic Sleeve Labeling Machine → Automatic Heat Shrinking Machine → Double Side Labeling Machine → Automatic Bottle Collection Platform |
| Bottle separating method | Reciprocating Bottle Feeding Module Driven By Servo Motor |
| Buffer tank (bag) | 30L Buffer Tank Or Buffer Bag, Equipped With An Automatic Weighing System, Keeps The Six-channel Liquid Output From The Buffer Tank (bag) At A Relatively Stable Flow Rate, And The Liquid Flow And Flow Rate Supplied To The Peristaltic Pump Are Stable To Ensure The Stability Of The Peristaltic Pump Filling Accuracy |
| Capping method | Six Groups Of Capping Units Controlled By Servo Motors, Each Group Is Controlled By Servo Motors Individually, Three-jaw Capping Head. The Bottle Cap Can Be Unscrewed In The Reverse Direction And Screwed On In The Forward Direction |
| Level control | Equipped With Weighing Module |
This culture medium filling machine is equipped with a 30L buffer tank or buffer bag, which is equipped with an automatic weighing system to keep the six-channel liquid output at a relatively stable flow rate. The liquid flow and flow rate supplied to the peristaltic pump are stable, ensuring the stability of the peristaltic pump filling accuracy. Additionally, six groups of capping units controlled by servo motors are included, each group is controlled separately with a three-jaw capping head. The bottle cap can be unscrewed in the reverse direction and screwed on in the forward direction.
This cellular culturing media filler is produced in Qidong, Jiangsu, and has obtained certification from TUV, SGS, UL, ISO, and GMP. The minimum order quantity is one, and the price is negotiable. The packaging details include export standard wooden cases, and delivery time takes up to 60 working days. The payment terms are TT, and the supply ability is 10pcs/month. The filling and capping machine requires a power supply of 220v 50Hz, while the heat-shrinking machine and labeling machine require 380v 50Hz.
The PERWIN PW-ZMGX660 cellular culture medium filler is a high-precision machine that meets the requirements of various liquid medicines, including cellular culturing media. The machine is equipped with a weighing module for level control and is made of high-quality materials that are safe, reliable, and hygienic. It is suitable for pharmaceutical companies that require high-precision filling and capping of liquid medicines.
The Media Filling Machine is a precision instrument designed to accurately fill media into various containers. Our technical support team is available to assist with any issues or questions regarding the operation and maintenance of the machine.
We offer a range of services to ensure the optimal performance of your Media Filling Machine, including:
Our goal is to provide reliable and efficient support to ensure your Media Filling Machine operates at its best, reducing downtime and increasing productivity.
Q1: What is the brand name of the media filling machine?
A1: The brand name of the media filling machine is PERWIN.
Q2: What is the model number of the media filling machine?
A2: The model number of the media filling machine is PW-ZMGX660.
Q3: Where is the media filling machine manufactured?
A3: The media filling machine is manufactured in Qidong, Jiangsu.
Q4: What certifications does the media filling machine have?
A4: The media filling machine is certified with CE, ISO, GMP, UL, TUV, and SGS.
Q5: What is the minimum order quantity of the media filling machine?
A5: The minimum order quantity of the media filling machine is 1.
Q6: What is the price of the media filling machine?
A6: The price of the media filling machine is negotiable.
Q7: What are the packaging details of the media filling machine?
A7: The media filling machine is packaged in export standard wooden cases.
Q8: What is the delivery time of the media filling machine?
A8: The delivery time of the media filling machine is 60 working days.
Q9: What are the payment terms for the media filling machine?
A9: The payment terms for the media filling machine are TT.
Q10: What is the supply ability of the media filling machine?
A10: The supply ability of the media filling machine is 10pcs/month.
