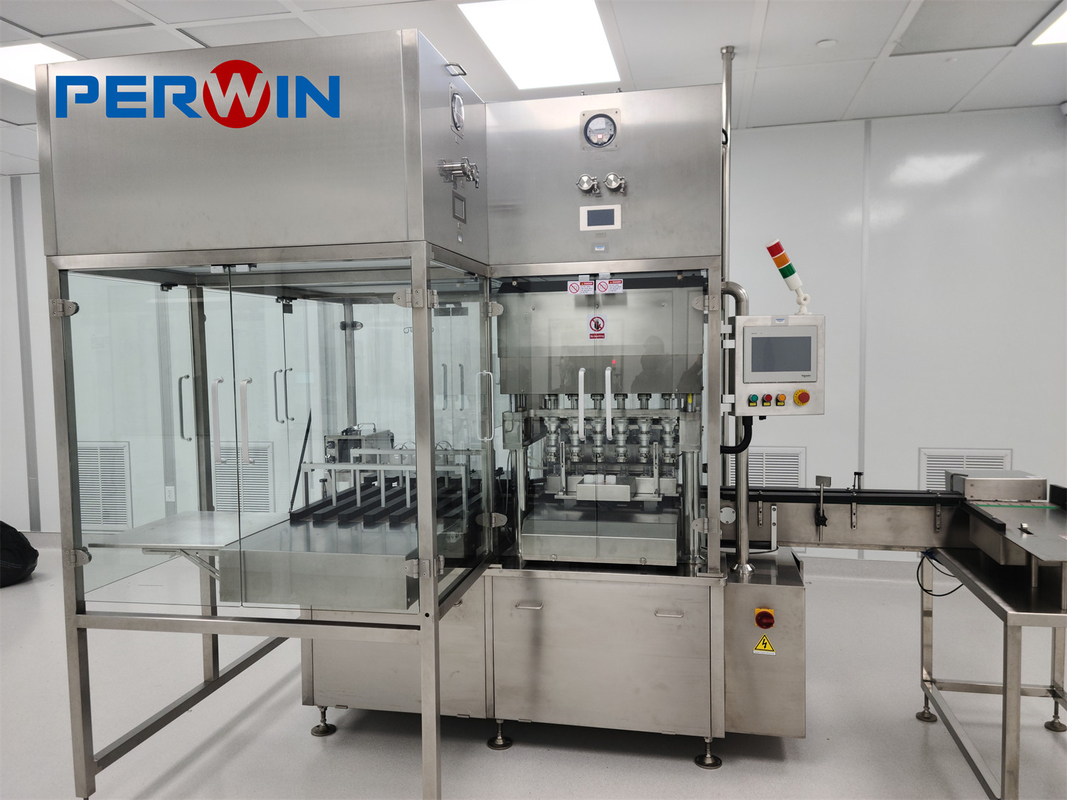

Automatic Heat Shrinking Machine For 125ml And 500ml Cellular Culturing Media Filler

Product Description:

The Media Filling Machine is equipped with a weighing module that ensures accurate level control, making it possible to measure and dispense the exact amount of media required for each bottle. Additionally, the reciprocating bottle feeding module driven by a servo motor ensures that the bottles are separated and fed into the filling station with ease and precision.
The capping method of the Media Filling Machine is equally impressive, with six groups of capping units controlled by servo motors. Each group is controlled individually, ensuring that the three-jaw capping head securely screws on the bottle cap in the forward direction and unscrews it in the reverse direction. A set of high-power servo motors controls the capping head lift, ensuring that the capping process is completed smoothly and efficiently.
The Media Filling Machine is designed with security in mind, and it is made of SS304 and tempered glass. The machine is equipped with an emergency stop device, alarm information, door open shutdown, and other safety features that ensure the safety of the user and the product.
The Cellular culture medium filling machine is perfect for laboratories and production facilities that require a reliable and efficient device for filling cell culturing medium. The Media Filling Machine is designed to meet the highest standards of quality and efficiency, making it an ideal choice for businesses in the biotech and pharmaceutical industries.

Features:

• Product Name: Media Filling Machine
• Buffer tank (bag): 30L Buffer Tank Or Buffer Bag, Equipped With An Automatic Weighing System, Keeps The Six-channel Liquid Output From The Buffer Tank (bag) At A Relatively Stable Flow Rate, And The Liquid Flow And Flow Rate Supplied To The Peristaltic Pump Are Stable To Ensure The Stability Of The Peristaltic Pump Filling Accuracy
• Bottle specification: 125ml And 500ml
• Security: SS304+ Tempered Glass. Alarm Information, Door Open Shutdown; Emergency Stop Device, Etc.
• Measurement method: Six Sets Of Precision Pump Heads, Driven By Servo Motors, Set And Adjust The Filling Volume On The Touch Screen
• Capping torque control: Each Capping Unit Is Controlled By A Servo Motor, And The Capping Torque Of The Servo Motor Is Preset. When Capping, If The Preset Capping Torque Is Not Reached, The Servo Motor Will Automatically Tighten The Cap To The Preset Torque

This is a Cell culture medium filling machine, Cell culture media filler, Cellular culturing media filler.

Technical Parameters:

Applications:

This culture medium filling machine is ideal for laboratories, pharmaceutical industries, and other related fields. It is perfect for filling various types of culture media, including cell culturing media. Its precise filling technology ensures that the culture medium is filled accurately and efficiently.
The PERWIN PW-ZMGX660 is made in Qidong, Jiangsu, and has various certifications, including CE, ISO, GMP, UL, TUV, and SGS. It has a minimum order quantity of 1 and the price is negotiable. The product is packaged in export standard wooden cases and has a delivery time of 60 working days. The accepted payment term is TT, and the product has a supply ability of 10pcs/month.
The capping torque control of this cell culturing medium filling machine is exceptional. Each capping unit is controlled by a servo motor, and the capping torque of the servo motor is preset. When capping, if the preset capping torque is not reached, the servo motor will automatically tighten the cap to the preset torque.
The security of this product is also impressive. It is made of SS304+ tempered glass, and it has alarm information, door open shutdown, emergency stop device, etc. The production line composition of this product is square bottle 6 heads filling and capping machine, automatic sleeve labeling machine, automatic heat shrinking machine, double side labeling machine, and automatic bottle collection platform.
The servo motor of this culture medium filling machine is Delta from China. It is of high quality and durable. The buffer tank (bag) of this product is 30L buffer tank or buffer bag, equipped with an automatic weighing system. It keeps the six-channel liquid output from the buffer tank (bag) at a relatively stable flow rate, and the liquid flow and flow rate supplied to the peristaltic pump are stable to ensure the stability of the peristaltic pump filling accuracy.

Support and Services:

The Media Filling Machine is a high-performance product designed to fill various types of media into containers with precision and accuracy. It comes equipped with advanced features such as a touch screen interface, automatic filling control, and a built-in sensor system to detect container position and prevent overfilling.
Our technical support team is available to assist with any issues or questions you may have regarding the Media Filling Machine. We offer comprehensive training and installation services to ensure that the product is properly integrated into your production line. Additionally, we provide maintenance and repair services to keep the machine running smoothly and minimize downtime.
We take pride in our commitment to customer satisfaction and strive to provide timely and effective support for all Media Filling Machine users. Contact us today to learn more about our technical support and services.

FAQ:

Q: What is the brand name of the Media Filling Machine?
A: The brand name of the Media Filling Machine is PERWIN.
Q: What is the model number of the Media Filling Machine?
A: The model number of the Media Filling Machine is PW-ZMGX660.
Q: Where is the Media Filling Machine manufactured?
A: The Media Filling Machine is manufactured in Qidong, Jiangsu.
Q: What certifications does the Media Filling Machine have?
A: The Media Filling Machine is certified with CE, ISO, GMP, UL, TUV, SGS.
Q: What is the minimum order quantity for the Media Filling Machine?
A: The minimum order quantity for the Media Filling Machine is 1.
Q: What is the price of the Media Filling Machine?
A: The price of the Media Filling Machine is negotiable.
Q: What are the packaging details for the Media Filling Machine?
A: The Media Filling Machine is packaged in export standard wooden cases.
Q: What is the delivery time for the Media Filling Machine?
A: The delivery time for the Media Filling Machine is 60 working days.
Q: What are the payment terms for the Media Filling Machine?
A: The payment terms for the Media Filling Machine are TT.
Q: What is the supply ability for the Media Filling Machine?
A: The supply ability for the Media Filling Machine is 10pcs/month.
