Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Filling Head Lift: |
Servo Motor Control |
Filling Clean Area: |
Divided Into Three Zones, Q1, Q2, Q3, All Are C+A, But Each Zone Has A Difference In Wind Speed |
Labeling Machine: |
Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning |
Working Flow: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
PLC: |
Siemens 1500 |
Material: |
Stainless Steel |
Representative Customers: |
Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, Sciencell |
Filling Solution: |
Animal Sera, Easily Foaming, FBS |
Filling Head Lift: |
Servo Motor Control |
Filling Clean Area: |
Divided Into Three Zones, Q1, Q2, Q3, All Are C+A, But Each Zone Has A Difference In Wind Speed |
Labeling Machine: |
Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning |
Working Flow: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
PLC: |
Siemens 1500 |
Material: |
Stainless Steel |
Representative Customers: |
Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, Sciencell |
Filling Solution: |
Animal Sera, Easily Foaming, FBS |
This filling machine has a filling temperature range of 0-100℃, making it suitable for filling a wide range of animal serum products. It comes with a weighing unit that comprises a Mettler Load Cell and Controller, which ensures accurate and precise filling of the products. The machine's weighing unit is installed on a marble floor foundation, which provides stability and durability.

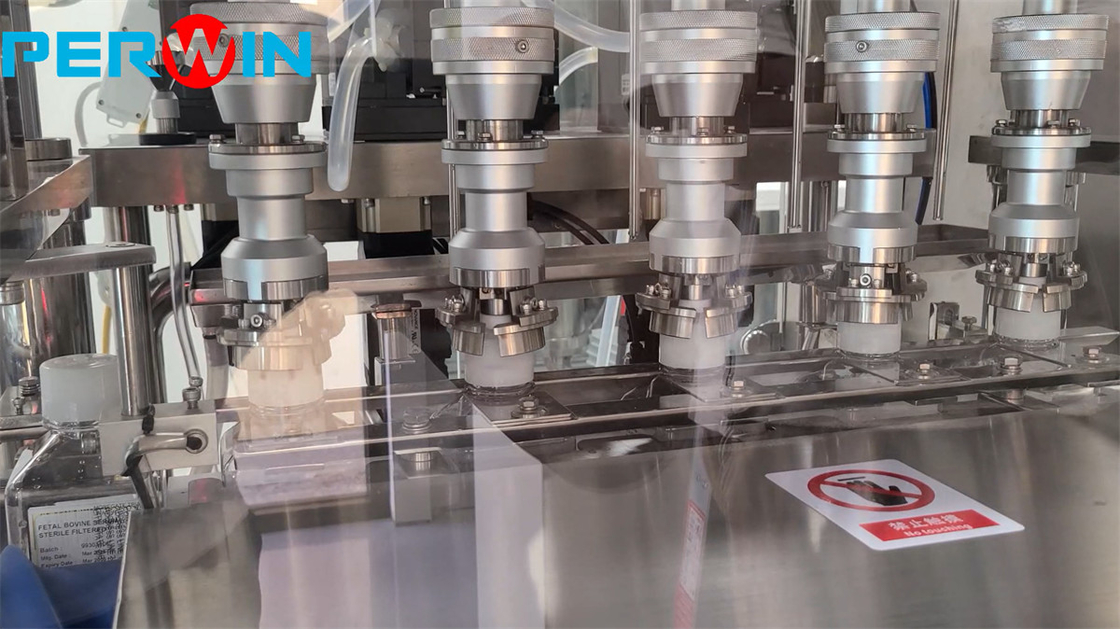

The Animal Sera Filling Machine is designed to fill easily foaming animal serum products such as FBS. It has a unique capping head lift that uses servo motor control, making it easy to cap and seal the filled products. This feature ensures that the filled products are properly sealed, preventing contamination and ensuring product purity.
This filling machine is an ideal choice for companies that deal with animal blood products. Its unique features make it suitable for filling animal serum and FBS products accurately and efficiently. Get the Animal Sera Filling Machine today and experience a seamless and efficient filling process.
| Parameter | Description |
|---|---|
| Working Process | Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform |
| Filling Program Control | Each Group Of Pumps Is Individually Controlled |
| Security | 304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed |
| Filling Speed | 5~30bottles/min |
| Buffer Bag | Single Use Buffer Bag With Pipes And Filling Nozzles |
| Filling Accuracy | ±0.5~1% |
| Filling Volume | 500ml And 1000ml (PETG Square Bottle) |
| Power Consumption | 10KW For Whole Line |
| Filling Nozzle | Five/Six/Seven/Eight |
| Torque Control Method | Servo Technology |
The Animal Sera Filling Machine is equipped with servo motor control to lift the filling head and servo technology to control the torque. The filling program control enables each group of pumps to be individually controlled, giving you more flexibility and accuracy in the filling process.
The Animal Blood Filling Machine is best suited for laboratories, blood banks, and research facilities. The machine is a perfect fit for filling animal sera, easily foaming, and FBS. The product is a great asset for people working in the life sciences field, with a specific focus on animal blood research.
The Animal Sera filling line is designed to be used in various scenarios, including research facilities, blood banks, and animal serum production units. The machine can handle different types of animal sera, making it a versatile solution for various applications. The product is specifically designed to ensure accurate and precise filling, which is essential for animal serum production.
In conclusion, PERWIN PW-ZWGX550 is a reliable and efficient machine, designed for filling animal sera, easily foaming, and FBS. It comes with excellent features like servo motor control, servo technology, and filling program control that make it a perfect fit for blood banks, laboratories, and research facilities. The machine is designed to handle various animal sera and can be used in different scenarios. With a power consumption of 10KW for the whole line, it is an energy-efficient machine that can help you save on your energy bills.
The Animal Sera Filling Machine is a highly advanced piece of equipment that requires technical support to operate effectively. Our team of expert technicians is available to provide product technical support and services to ensure that your machine is always running at optimal performance.
Our technical support services include:
We also offer comprehensive service contracts to help you maximize the lifespan of your Animal Sera Filling Machine. Our service contracts include scheduled maintenance, on-site support, and priority access to replacement parts.
Our goal is to ensure that our customers receive the highest level of support and service throughout the lifetime of their equipment. Contact us today to learn more about our product technical support and services.
