Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Filling Program Control: |
Each Group Of Pumps Is Individually Controlled |
Rejection Unit: |
Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Correspo |
Dimension: |
3000*900*1800mm |
Pneumatic Components: |
SMC Or Festo |
Filling Temperature: |
0-100℃ |
Weight: |
1000kg |
Bottle Separating Method: |
1 Set Of Servo Motor Drive Screw For Positioning |
Air Consumption: |
0.3m³/min |
Filling Program Control: |
Each Group Of Pumps Is Individually Controlled |
Rejection Unit: |
Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Correspo |
Dimension: |
3000*900*1800mm |
Pneumatic Components: |
SMC Or Festo |
Filling Temperature: |
0-100℃ |
Weight: |
1000kg |
Bottle Separating Method: |
1 Set Of Servo Motor Drive Screw For Positioning |
Air Consumption: |
0.3m³/min |
The Animal Sera Filling Machine is a specialized machine for filling animal sera and animal plasma products. It can be used to fill animal sera and animal plasma products with high accuracy and fast speed. The machine is manufactured by top-notch manufacturers like Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, and Sciencell. It is equipped with a Mettler Load Cell + Controller for precise weighing, and a marble floor installation foundation for stability and accuracy. With a dimension of 3000*900*1800mm and filling nozzle of five/six/seven/eight, this machine has a low air consumption of 0.3m³/min. It is designed for aseptic filling of animal plasma products and is the perfect solution for animal sera and animal plasma filling needs. It is the ideal equipment for animal sera filling and animal plasma aseptic filling line.
| Parameter | Description |
|---|---|
| Product Name | Animal Sera Filling Machine |
| Filling Head | Five/Six/Seven/Eight |
| Power Consumption | 10KW For Whole Line |
| Environmental monitoring | Online Particle And Planktonic Monitoring System |
| Filling Temperature | 0-100℃ |
| Labeling machine | Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning |
| Pneumatic components | SMC Or Festo |
| Filling method | 5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen |
| Filling environment | Aseptic Filling Environment, A-class(ISO5) 100 Laminar Flow Hood Is Required |
| Printing | Zebra Thermo Transfer Printer |
The PERWIN PW-ZWGX550 Animal Sera Aseptic Filling Device is a reliable and efficient machine for filling animal sera. It is manufactured with the highest quality materials and certified by CE, ISO, GMP, UL, TUV and SGS. The minimum order quantity is one unit and the price is negotiable. The machine comes with an export standard wooden case and the delivery time is 60 working days. Payments are accepted through TT and the supply ability is 10pcs/month. The weight of the machine is 1000 kg and the weighing unit is Mettler Load Cell + Controller. Marble Floor Installation Foundation.

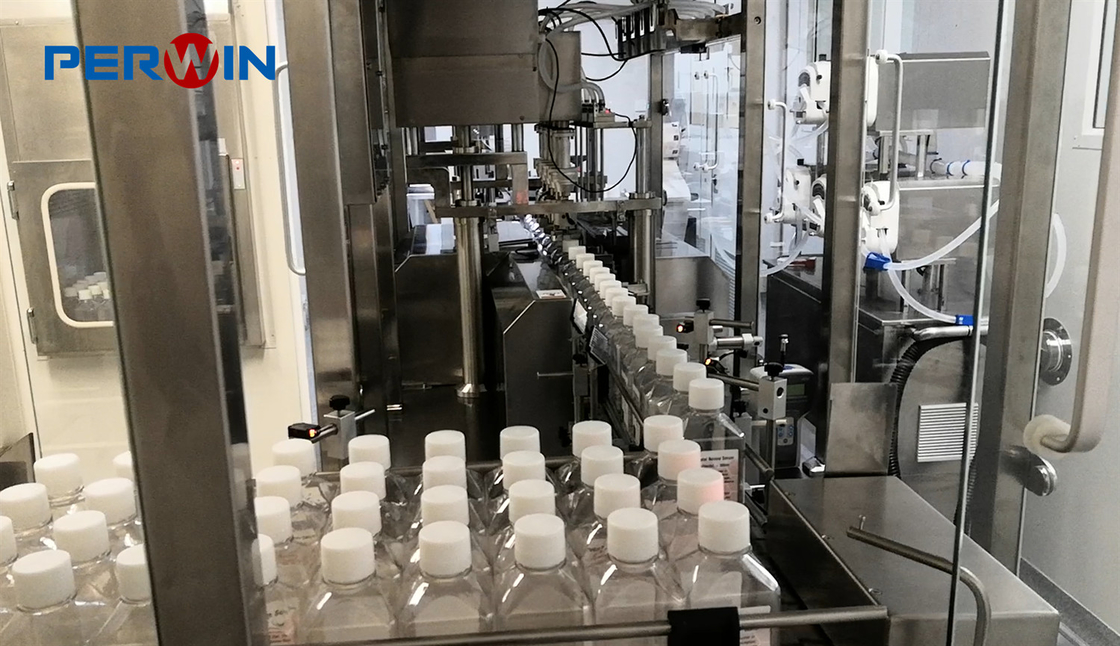

The Animal Sera Aseptic Filling Device is designed with a bottle loading on powered platform (unpacking station), screw positioning bottle, de-capping, weighing I, peristaltic pump filling, weighing II and capping, automatic rejection station, finished products to packing area, automatic sleeve labeling, heat shrinking machine, single side labeling machine and bottle collection platform. It also features a filling head lift servo motor control.
This Animal Sera Filling Machine is suitable for sterile liquid filling of animal sera in medical, food and other industries, ensuring precise, fast and safe filling. With its highly automated and stable operation, it has become a popular choice for many customers.
We provide technical support and service for Animal Sera Filling Machine. Our technical support team is available to help with installation, maintenance, and troubleshooting.
We offer on-site service and remote support for Animal Sera Filling Machine, as well as phone and email support. Our technicians are highly trained and experienced in Animal Sera Filling Machine, so you can be sure that your machine is in good hands.
We also offer regular maintenance and repair services for Animal Sera Filling Machine. This includes parts replacement, system cleaning, and more. Our technicians will inspect your machine, make any necessary repairs, and ensure that it is running smoothly.
We understand that time is of the essence, so our technicians are available 24/7 to provide prompt and reliable service. We strive to provide the best customer service possible, and we take pride in our work.
If you have any questions or need assistance with Animal Sera Filling Machine, please don't hesitate to contact us.
