Filling And Capping Machine Media Filling Machine Power Supply 220V 50Hz

Product Description:

The Media Filling Machine is a cellular culture medium filler and cell culture media filler designed to accurately fill culture medium and culture media. The HMI is Japan Fuji, and the accuracy is ≤±1%. The weighing unit is composed of a Mettler Load Cell and Controller, and is installed on a marble floor foundation. The working flow is composed of bottle loading on a powered platform (unpacking station), screw positioning bottle, de-capping, weighing I, peristaltic pump filling, weighing II and capping, automatic rejection station, finished products to packing area, automatic sleeve labeling, heat shrinking machine, single side labeling machine and bottle collection platform. The automatic sleeve labeling machine and heat shrinking machine contains about 5 meters of conveyor belt.

Features:

• Laminar flow hood: All Stainless Steel 304*1.0t Material, Brushed Surface Treatment; The Overall Surface Of The Equipment Has No Burrs; No Scratches; No Oil Stains And Defects That Affect The Appearance. Using The Form Of Liquid Tank Seal, In Line With The New GMP Specification. EBM Centrifugal Fan Is Equipped Inside; The Vertical Air Supply Surface Is Equipped With Flow Equalization Membrane; The Wind Speed Is Adjustable From 0.36 To 0.54m/s. Equipped With LED Lighting, Independent Control Panel; The Illumination Of The Work Area Is Greater Than 300Lx. Equipped With Primary Filter And H14 High-efficiency Filter; Filtration Efficiency 99.995%@0.3μm. Equipped With High-efficiency Resistance Differential Pressure Gauge And PAO Detection Port. Stainless Steel Controller Panel With Liquid Crystal Display, Connected With The Laminar Flow Wall Plate Plane, No Steps And No Bacteria Dust Collection; Multi-level Adjustment Of Wind Speed.
• Rejection unit: Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Corresponding Cylinder. At The Top Of Each Channel, A Full Bottle Sensor Is Installed.
• Whole line power: About 10KW (subject To Actual Design)
• Filling program control: Each Group Of Pumps Is Individually Controlled
• Buffer tank and liquid level control system: The Weighing Module Controls The Liquid Level Change Of The Buffer Tank, And The Host PLC Controls
• Cell culture media filler: designed for the filling of cell culture media
• Cell culturing medium filling machine: specialized machine for the filling of cell culturing media
• Cellular culture medium filler: machine specifically designed for the filling of cellular culture media

Technical Parameters:

Applications:

PERWIN's PW-ZWGX550 cell culture medium filling machine is a reliable and efficient filling solution for cellular culture medium. With CE, ISO, GMP, UL, TUV and SGS certifications, this machine has a minimum order quantity of 1 and is offered at a negotiable price. It is packed in export standard wooden cases and can be delivered within 60 working days. The machine has a supply ability of 10pcs/month, and payment terms are TT.

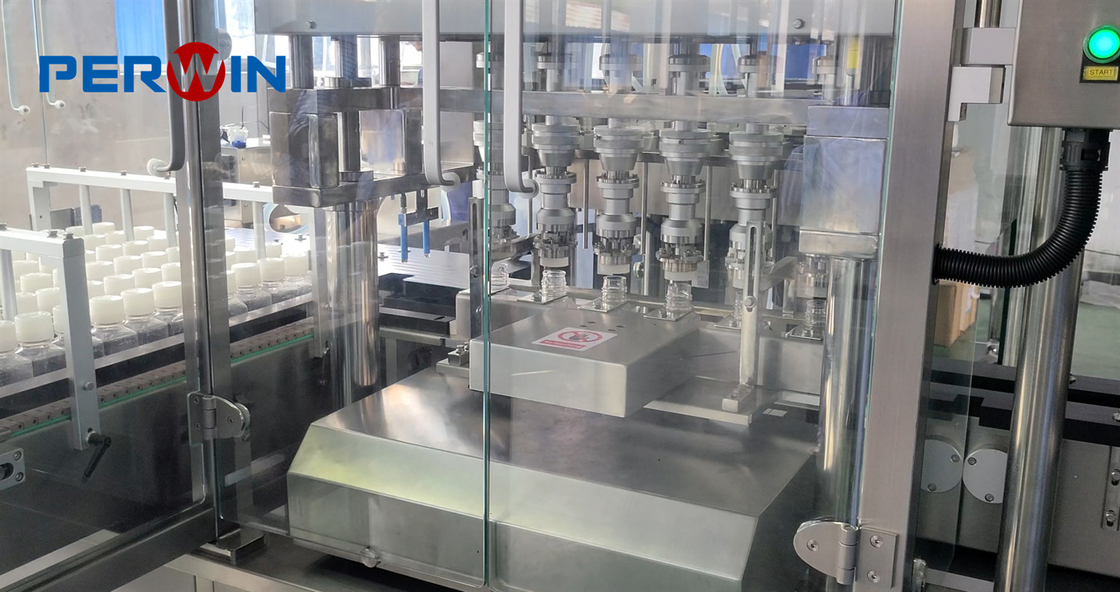

This machine is equipped with a 5 heads aseptic filling and capping machine. It features servo motor controls for the positioning screw of bottle separating and the capping unit lifting type capping. Two sets of servo systems are used to control the filling and cap lifting mechanism. The filling needle, which is equipped with automatic protection function for deviation from the bottle mouth, is controlled by a servo-controlled peristaltic pump. Additionally, a 316L liquid distributor (5 channels) is also included.

To ensure the filling process is precise and safe, a rejection unit is included. It is equipped with an automatic reject workstation and conveyor belt controlled by servo motor. An unqualified bottle can be pushed into the corresponding channel of the collection platform. At the top of each channel, a full bottle sensor is installed for accurate detection.

To monitor the quality of the filled medium, the machine is also equipped with an online particle and planktonic monitoring system (particle counting devices for environmental monitoring). It is controlled by an independent Siemens PLC and touch screen.

For precise bottle separating, the machine is also equipped with a bottle separating method driven by a servo motor. It is designed to separate bottles with a compressed air pressure of 0.6MPa.

Customization:

PERWIN's culture medium filling machine, also known as cellular culture media filler and cellular culturing media filler, is the perfect solution for your laboratory needs. It is equipped with a PLC of the Siemens 1500 series, an independent Siemens PLC and touchscreen control, a precision sheet metal design of 304 stainless steel, 5 independent Mettler load cells and controllers, a 600mm conveyor belt, 5 sets of pneumatic rejecting and pushing mechanism, and a rejected product collection platform. It also features a 1-set servo motor drive screw for positioning. This product is certified by CE, ISO, GMP, UL, TUV, and SGS and comes with a minimum order quantity of 1 and a negotiable price. It also comes with export standard wooden cases for packaging and has a delivery time of 60 working days. Payment terms are TT and the supply ability is 10pcs/month.

Support and Services:

We provide comprehensive technical support and service for Media Filling Machine. Our professional team of technicians are available to provide assistance with installation, commissioning, maintenance, troubleshooting and repairs.

We offer a wide range of service options, from onsite inspections and installations to online technical support, helping you to keep your Media Filling Machine running at optimal performance.

We have a full range of spare parts in stock, and our technicians can provide advice on how to maximize the life of your Media Filling Machine.

Our technicians are also available to provide training and advice on the best practice for operating and maintaining your Media Filling Machine.
