Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Accuracy: |
≤±1% |
Bottle Separating Method: |
1 Set Of Servo Motor Drive Screw For Positioning |
Main Low Voltage Electrical: |
Schneider |
Zebra Thermal Transfer Printer: |
Bracket And Label Buffer Mechanism |
Basic Configuration Requirements Of The Production Line: |
Manual Bottle Loading, Automatic De-capping, Automatic Filling, Automatic Capping, Automatic Sleeve Labeling, Heat Shrinkage, Single-sided Labeling (the Entire Bottle Loading And Filling And Capping Process Is Sterile) |
Pneumatic Components: |
SMC, Festo |
Service Life: |
20 Years |
Control System: |
PLC + Touch Screen |
Accuracy: |
≤±1% |
Bottle Separating Method: |
1 Set Of Servo Motor Drive Screw For Positioning |
Main Low Voltage Electrical: |
Schneider |
Zebra Thermal Transfer Printer: |
Bracket And Label Buffer Mechanism |
Basic Configuration Requirements Of The Production Line: |
Manual Bottle Loading, Automatic De-capping, Automatic Filling, Automatic Capping, Automatic Sleeve Labeling, Heat Shrinkage, Single-sided Labeling (the Entire Bottle Loading And Filling And Capping Process Is Sterile) |
Pneumatic Components: |
SMC, Festo |
Service Life: |
20 Years |
Control System: |
PLC + Touch Screen |
Media Filling Machine is a cell culturing media filler designed to streamline cell culturing medium filling process. Constructed with a set of servo motor drive screw for positioning, the machine is constructed with a 1500kg weight and is capable of filling PETG square bottles of 500ml and 1000ml. With a built-in airborne bacteria and dust particle monitoring system, as well as a sleeve labeling machine and heat shrinking machine made of 304 stainless steel precision sheet metal and industrial design shape, this machine is an ideal choice for efficient cell culturing medium filling process.
| Parameter | Detail |
|---|---|
| Bottle specification | 500ml And 1000ml PETG Square Bottle |
| Servo system | Bus Control |
| Whole line power | About 10KW (subject To Actual Design) |
| Filling program control | Each Group Of Pumps Is Individually Controlled |
| Peristaltic pump set | Watson-Marlow 505L Pump Head, Driven By Servo Motor, Filling Accuracy≦±1% |
| Compressed Air Pressure | 0.6MPa |
| Working flow | Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform |
| Laminar flow hood | All Stainless Steel 304*1.0t Material, Brushed Surface Treatment; The Overall Surface Of The Equipment Has No Burrs; No Scratches; No Oil Stains And Defects That Affect The Appearance. Using The Form Of Liquid Tank Seal, In Line With The New GMP Specification. EBM Centrifugal Fan Is Equipped Inside; The Vertical Air Supply Surface Is Equipped With Flow Equalization Membrane; The Wind Speed Is Adjustable From 0.36 To 0.54m/s. Equipped With LED Lighting, Independent Control Panel; The Illumination Of The Work Area Is Greater Than 300Lx. Equipped With Primary Filter And H14 High-efficiency Filter; Filtration Efficiency 99.995%@0.3μm. Equipped With High-efficiency Resistance Differential Pressure Gauge And PAO Detection Port. Stainless Steel Controller Panel With Liquid Crystal Display, Connected With The Laminar Flow Wall Plate Plane, No Steps And No Bacteria Dust Collection; Multi-level Adjustment Of Wind Speed. Cleanliness: Class A Power Supply: 220V, 50Hz |
| Main low voltage electrical | Schneider |
| Filling head lift | Servo Motor Control |
| Cellular culturing media filler | Cell culture media filler, Cellular culture medium filling machine |
PERWIN's PW-ZWGX550 Cellular Culture Medium Filler is an advanced automated cell culture medium filling machine certified by CE, ISO, GMP, UL, TUV, and SGS. With its high quality 316L buffer tank, 20L standard Mettler weighing module, PLC + touch screen control system, Japan Fuji HMI, and servo technology torque control method, it is capable of providing the best and most reliable cell culture medium filling and capping process.
The PW-ZWGX550 Cellular Culture Medium Filler is perfect for any laboratory, production facility, or research institution that requires a reliable and accurate automated cell culture medium filling machine. It is designed with servo motor control capping head lift, ensuring precise and secure capping and sealing of containers. It is also designed for maximum efficiency and minimum waste, with an adjustable speed range and automatic filling and capping process.
The PW-ZWGX550 Cellular Culture Medium Filler is available at an affordable price and with a minimum order quantity of 1. It can be shipped in export standard wooden cases and delivery time is 60 working days. Payment terms are flexible and supply ability is up to 10pcs/month.

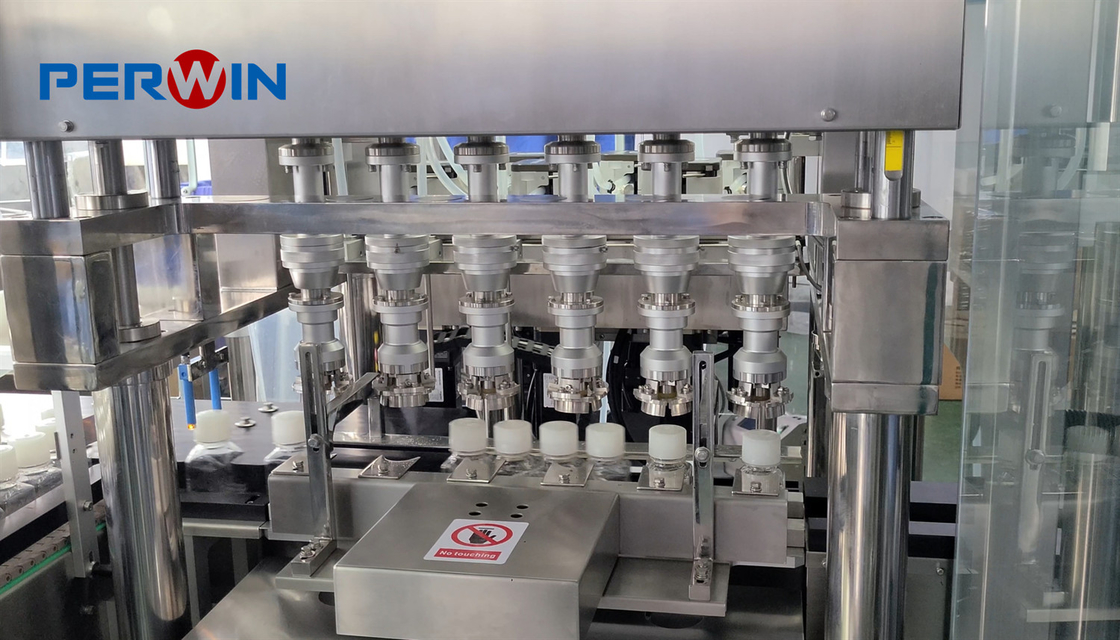

PERWIN PW-ZWGX550 Cellular Culturing Media Filler is a perfect solution for cell culturing media filling. This product comes with certifications from CE, ISO, GMP, UL, TUV, SGS, and it is packed with Export Standard Wooden Cases. Its compressed air pressure is 0.6MPa, and its basic configuration requirements of the production line include manual bottle loading, automatic de-capping, automatic filling, automatic capping, automatic sleeve labeling, heat shrinkage, and single-sided labeling. This Cellular Culturing Media Filler also features 5 sets of capping units, with each set of servo motors being individually controlled, providing clockwise capping and anti-clockwise capping. Additionally, this product also comes with an online particle and planktonic monitoring system, which includes independent Siemens PLC and touch screen control. The power supply of this product is 220V 50Hz for filling and capping machine and sleeve labeling machine, and 380V 50Hz for heat shrinking machine and labeling machine.
We offer technical support and service for our Media Filling Machines. Our team of experienced technicians can provide you with 24/7 support and advice, no matter where you are in the world. We can help you with installation, troubleshooting, maintenance and more. We also have a dedicated customer service team available to answer your questions and provide assistance.
We also provide our customers with replacement parts and accessories. Our parts are of the highest quality and are designed to last. We offer a wide range of parts for our Media Filling Machines, including filters, fittings, valves, seals and much more.
We also offer a range of training programs designed to help you understand how to use and maintain our Media Filling Machines. We have a range of courses available, including basic operation, advanced operation, troubleshooting and maintenance.
For more information on our technical support and service for Media Filling Machines, please contact us.
A: The brand name of this product is PERWIN.
A: The model number of this product is PW-ZWGX550.
A: This product is made in Qidong, Jiangsu.
A: This product has CE, ISO, GMP, UL, TUV, and SGS certifications.
A: This product can be supplied 10pcs each month.
