PLC Touch Screen Controlled Media Filling Machine Easy Operation Conveyor Belt Included

Product Description:

The Cellular Culturing Media Filler is a highly efficient and reliable filling machine that is designed to fill cellular culturing media quickly and accurately. It utilizes a 0.6MPa compressed air pressure system with a Watson-Marlow 505L peristaltic pump set, driven by a servo motor for enhanced accuracy and control. The aseptic filling system, which is compliant with ISO 5 HEPA standards, ensures that the filling process is safe and sterile. The filling program control allows for individual control of each group of pumps, providing greater control over the filling process. Additionally, the Zebra thermal transfer printer, with its bracket and label buffer mechanism, allows for accurate printing of labels and other data. With its high performance and reliable operation, the Cellular Culturing Media Filler is an ideal solution for efficient and accurate filling of cellular culturing media.

Features:

• Product Name: Media Filling Machine
• Buffer tank and liquid level control system: The Weighing Module Controls The Liquid Level Change Of The Buffer Tank, And The Host PLC Controls
• Laminar flow hood: All Stainless Steel 304*1.0t Material, Brushed Surface Treatment; The Overall Surface Of The Equipment Has No Burrs; No Scratches; No Oil Stains And Defects That Affect The Appearance. Using The Form Of Liquid Tank Seal, In Line With The New GMP Specification. EBM Centrifugal Fan Is Equipped Inside; The Vertical Air Supply Surface Is Equipped With Flow Equalization Membrane; The Wind Speed Is Adjustable From 0.36 To 0.54m/s. Equipped With LED Lighting, Independent Control Panel; The Illumination Of The Work Area Is Greater Than 300Lx. Equipped With Primary Filter And H14 High-efficiency Filter; Filtration Efficiency 99.995%@0.3μm. Equipped With High-efficiency Resistance Differential Pressure Gauge And PAO Detection Port. Stainless Steel Controller Panel With Liquid Crystal Display, Connected With The Laminar Flow Wall Plate Plane, No Steps And No Bacteria Dust Collection; Multi-level Adjustment Of Wind Speed. Cleanliness: Class A Power Supply: 220V, 50Hz
• Filling Speed: Up To 30 Bottles/min
• Capping head lift: Servo Motor Control
• Control System: PLC + Touch Screen
• Cellular culturing medium filler, Cell culturing media filler, Cell culture medium filling machine

Technical Parameters:

Applications:

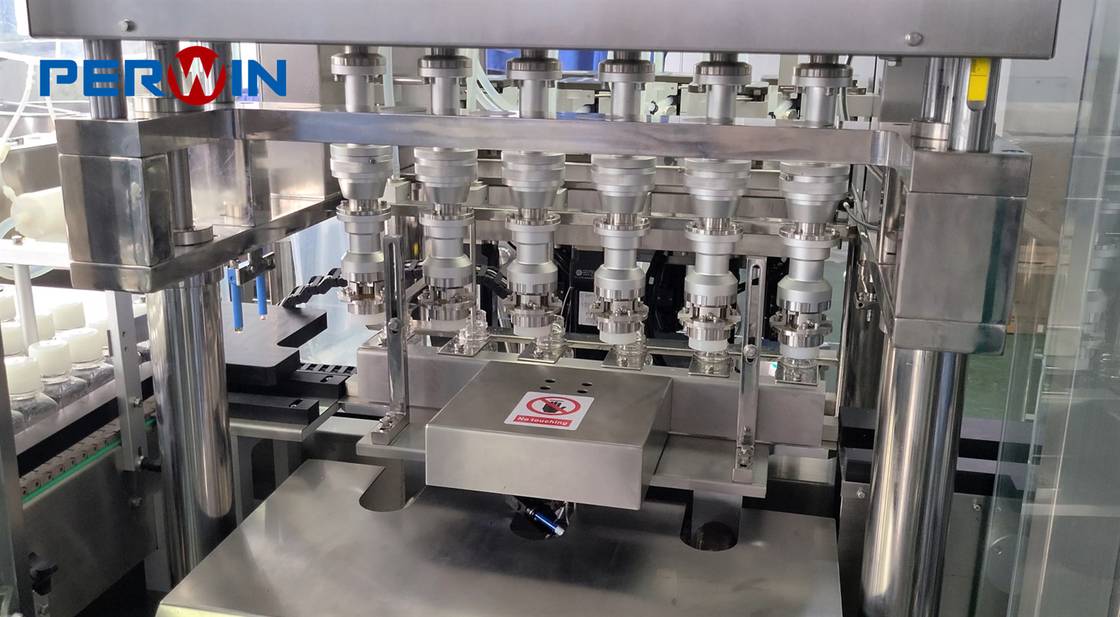

The PERWIN PW-ZWGX550 media filling machine is designed for filling cell culture media and animal sera, which is certified by CE, ISO, GMP, UL, TUV and SGS. It is built with special features such as capping head lift with servo motor control, online particle and planktonic monitoring system, 5 heads aseptic filling and capping machine with servo motor controls the positioning screw of bottle separating, bottle mouth positioning mechanism, 5 sets of servo capping groups, servo-controlled peristaltic pump filling unit, automatic protection function for filling needle deviation from the bottle mouth, anti-drip liquid receiving groove, anti-accumulation mechanism at the end of the bottle discharge screw, 316L liquid distributor (5 channels), two sets of servo systems respectively control the filling and cap lifting mechanism, and equipment safety isolation cover with 304 stainless steel and tempered glass plate. It also includes automatic sleeve labeling machine and heat shrinking machine with about 5 meters of conveyor belt. Minimum order quantity is 1 and the price is negotiable. Delivery time is 60 working days and payment terms are TT. It can supply up to 10pcs/month.

PERWIN PW-ZWGX550 media filling machine is the perfect solution for cell culture media and animal serum filling. It is equipped with advanced features such as capping head lift, online particle and planktonic monitoring system, 5 heads aseptic filling and capping machine, servo-controlled peristaltic pump filling unit, automatic protection function for filling needle deviation, 316L liquid distributor, two sets of servo systems respectively control the filling and cap lifting mechanism, and equipment safety isolation cover. It also includes automatic sleeve labeling machine and heat shrinking machine with about 5 meters of conveyor belt. It is CE, ISO, GMP, UL, TUV and SGS certified and comes with a minimum order quantity of 1, negotiable price, 60 working days delivery time and TT payment terms. It can supply up to 10pcs/month.

PERWIN PW-ZWGX550 media filling machine is ideal for cell culture media and animal serum filling. It is equipped with state-of-the-art features such as capping head lift, online particle and planktonic monitoring system, 5 heads aseptic filling and capping machine, servo-controlled peristaltic pump filling unit, automatic protection function for filling needle deviation, 316L liquid distributor, two sets of servo systems respectively control the filling and cap lifting mechanism, and equipment safety isolation cover. It also includes automatic sleeve labeling machine and heat shrinking machine with about 5 meters of conveyor belt. It is CE, ISO, GMP, UL, TUV and SGS certified and comes with a minimum order quantity of 1, negotiable price, 60 working days delivery time and TT payment terms. It can supply up to 10pcs/month and is the perfect solution for cell culture media and animal serum filling.

Customization:

Support and Services:

Media Filling Machine provides technical support and service for customers in the following ways:

• 24/7 online technical support
• On-site technical support and service
• Remote technical support and service
• Regular software and hardware updates
• Troubleshooting and problem-solving services

FAQ:

• Q: What is the Brand Name of this Media Filling Machine?
  A: The Brand Name is PERWIN.
• Q: What is the Model Number of this Media Filling Machine?
  A: The Model Number is PW-ZWGX550.
• Q: Where is this Media Filling Machine made?
  A: This Media Filling Machine is made in Qidong, Jiangsu.
• Q: What certifications does this Media Filling Machine have?
  A: This Media Filling Machine is certified with CE, ISO, GMP, UL, TUV, SGS.
• Q: What is the minimum order quantity of this Media Filling Machine?
  A: The minimum order quantity is 1.
