Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Filling Program Control: |
Each Group Of Pumps Is Individually Controlled |
PLC: |
Siemens 1500 |
Pneumatic Components: |
SMC Or Festo |
Filling Accuracy: |
±0.5~1% |
Filling Speed: |
5~30bottles/min |
Filling Head Lift: |
Servo Motor Control |
Dimension: |
3000*900*1800mm |
Rejection Unit: |
Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Correspo |
Filling Program Control: |
Each Group Of Pumps Is Individually Controlled |
PLC: |
Siemens 1500 |
Pneumatic Components: |
SMC Or Festo |
Filling Accuracy: |
±0.5~1% |
Filling Speed: |
5~30bottles/min |
Filling Head Lift: |
Servo Motor Control |
Dimension: |
3000*900*1800mm |
Rejection Unit: |
Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Correspo |

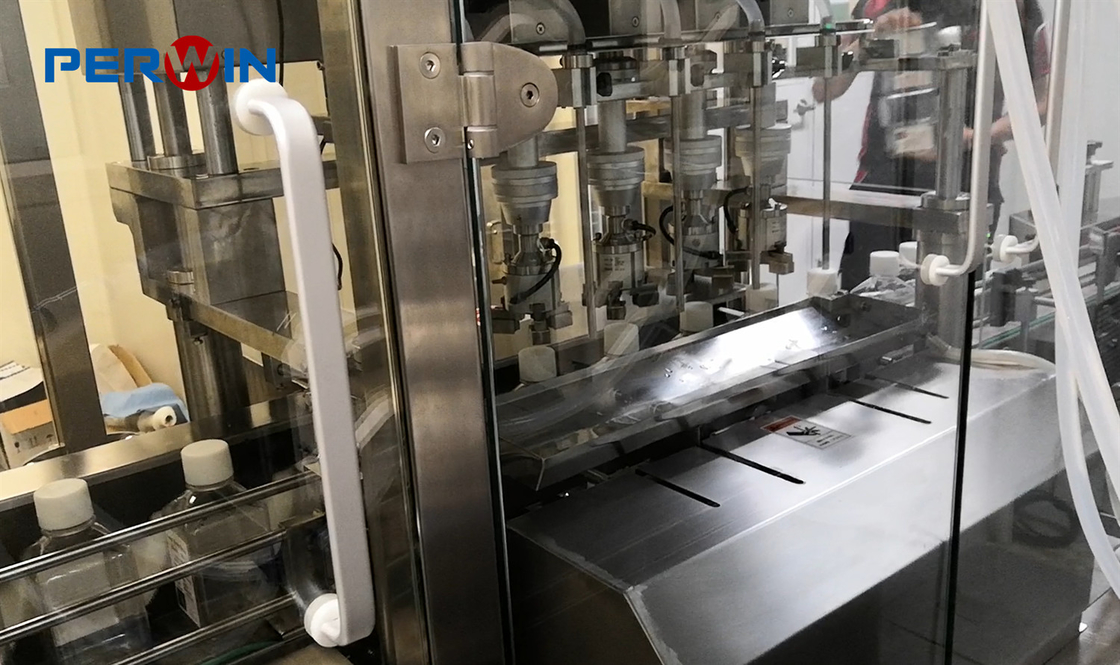

The Animal Sera Filling Machine is an aseptic filling line designed for animal plasma. It is equipped with a servo motor to control the lifting of the filling head, an automatic rejection workstation and a conveyor belt controlled by servo motor. The workstation consists of a group of 5 bottles, each bottle being matched with a cylinder. Unqualified bottles can be pushed into the corresponding channel of the collection platform with the corresponding cylinder. At the top of each channel, a full bottle sensor is installed. Air pressure of the machine is adjustable from 0.6-0.8Mpa and it has a filling capacity of 500ml and 1000ml. The labeling machine is capable of mechanical synchronization of top pressure positioning mechanism, horizontal positioning mechanism and conveyor belt, three-in-one power, providing accurate and stable positioning.
| Product Attributes | Product Specifications |
|---|---|
| Rejection unit | Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Corresponding Cylinder. At The Top Of Each Channel, A Full Bottle Sensor Is Installed |
| Representative customers | Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, Sciencell |
| Labeling machine | Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning |
| Power Consumption | 10KW For Whole Line |
| Security | 304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed |
| Filling Pressure | 0-0.3Mpa |
| Printing | Zebra Thermo Transfer Printer |
| Weight | 1000kg |
| Filling Nozzle | Five/Six/Seven/Eight |
| Environmental monitoring | Online Particle And Planktonic Monitoring System |
PERWIN PW-ZWGX550 Animal Sera Aseptic Filling Device is an indispensable equipment for aseptic animal serum and plasma filling in the laboratory. It adopts servo motor control to lift the filling head, and the PLC is Siemens 1500. It is equipped with a Zebra thermo transfer printer and has a weight of 1000kg. The air pressure required for the device is 0.6-0.8Mpa. The Animal Sera Filling Machine is CE, ISO, GMP, UL, TUV and SGS certified, and has a minimum order quantity of 1. The price is negotiable and delivery time is 60 working days. The packaging for export is standard wooden cases and the supply ability is 10pcs/month. With its reliable performance, it is widely used in the laboratory for the aseptic filling of animal sera and plasma.
Animal Serum Filling Equipment – PERWIN PW-ZWGX550
PERWIN PW-ZWGX550 Animal Serum Filling Machine is designed for automatic filling serum, especially for filling Animal Serum. It is used for the production of Fetal Bovine Serum, which is widely used in the laboratory. This machine is made of high quality stainless steel and is equipped with a 304 stainless steel frame, tempered glass cover, emergency stop device, earth leakage protection and HEPA filter.
Animal Sera Filling Machine technical support and service includes:
