Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Filling Program Control: |
Each Group Of Pumps Is Individually Controlled |
Filling Speed: |
5~30bottles/min |
Filling Pressure: |
0-0.3Mpa |
Dimension: |
3000*900*1800mm |
Working Flow: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Pneumatic Components: |
SMC Or Festo |
Capping Method: |
5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping |
Environmental Monitoring: |
Online Particle And Planktonic Monitoring System |
Filling Program Control: |
Each Group Of Pumps Is Individually Controlled |
Filling Speed: |
5~30bottles/min |
Filling Pressure: |
0-0.3Mpa |
Dimension: |
3000*900*1800mm |
Working Flow: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Pneumatic Components: |
SMC Or Festo |
Capping Method: |
5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping |
Environmental Monitoring: |
Online Particle And Planktonic Monitoring System |

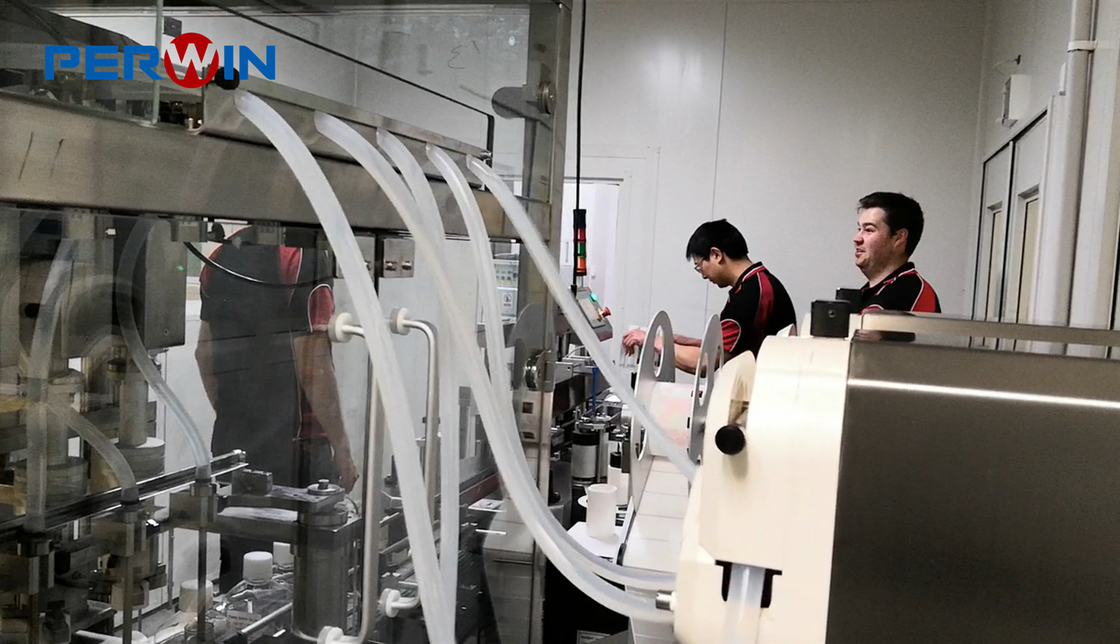

The FBS filling machine is a revolutionary Animal Sera filling line designed for aseptic filling of Animal Plasma. It is equipped with advanced features such as Servo Motor Control, Automatic Reject Workstation and Conveyor Belt, all of which are controlled by a sophisticated programmable logic controller. The machine is also equipped with Cylinders, Full Bottle Sensors, Pumps, Single Use Buffer Bags, Pipes, Filling Nozzles and is capable of running on 220V/380V/415V/440V power supply. With its advanced features and reliable performance, the FBS filling machine is the ideal choice for any animal sera aseptic filling line.
| Technical Parameter | Value |
|---|---|
| Animal Blood Filler | 5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen |
| Filling Nozzle | Five/Six/Seven/Eight |
| Security | 304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed |
| Filling Temperature | 0-100℃ |
| Dimension | 3000*900*1800mm |
| Buffer bag | Single Use Buffer Bag With Pipes And Filling Nozzles |
| Filling program control | Each Group Of Pumps Is Individually Controlled |
| Power Consumption | 10KW For Whole Line |
| Filling environment | Aseptic Filling Environment, A-class(ISO5) 100 Laminar Flow Hood Is Required |
| Weighing unit | Mettler Load Cell + Controller. Marble Floor Installation Foundation |
The PERWIN PW-ZWGX550 Animal Sera Filling Machine is designed to meet the demands of aseptic filling of animal sera and other related products. This filling machine is certified by CE, ISO, GMP, UL, TUV and SGS, ensuring high-level safety and reliability. It has a minimum order quantity of 1, and the price is negotiable. It is capable of packing 10 pieces per month with an air consumption of 0.3 m³/min. The machine is made of stainless steel and is equipped with a mechanical synchronization of top pressure positioning mechanism, horizontal positioning mechanism and conveyor belt. It weighs 1000kg and is exported in standard wooden cases.
The working flow of this animal sera filling machine includes bottle loading onto the powered platform (unpacking station), screw positioning bottle, de-capping, weighing I, peristaltic pump filling, weighing II and capping, automatic rejection station, finished products to packing area, automatic sleeve labeling, heat shrinking machine, single side labeling machine and bottle collection platform. All of the process is guaranteed to be aseptic and accurate.
The PERWIN PW-ZWGX550 Animal Sera Filling Machine can be used for a wide range of applications, such as aseptic filling of animal sera, animal plasma aseptic filling line and other related products. It is the perfect choice for high-quality and efficient production.
We provide comprehensive technical support and service for our Animal Sera Filling Machine.
Our technical support team is available to assist you with any questions or concerns you may have regarding installation, operation, maintenance, and troubleshooting.
We provide on-site service, telephone assistance, and online support. Our on-site technicians are highly experienced and certified in the installation and operation of our machines.
We also offer spare parts, routine maintenance, and upgrades. Our spare parts are of the highest quality and are designed to ensure maximum performance and reliability.
We are committed to providing the highest level of customer service and support. If you have any questions or concerns, please do not hesitate to contact us.
