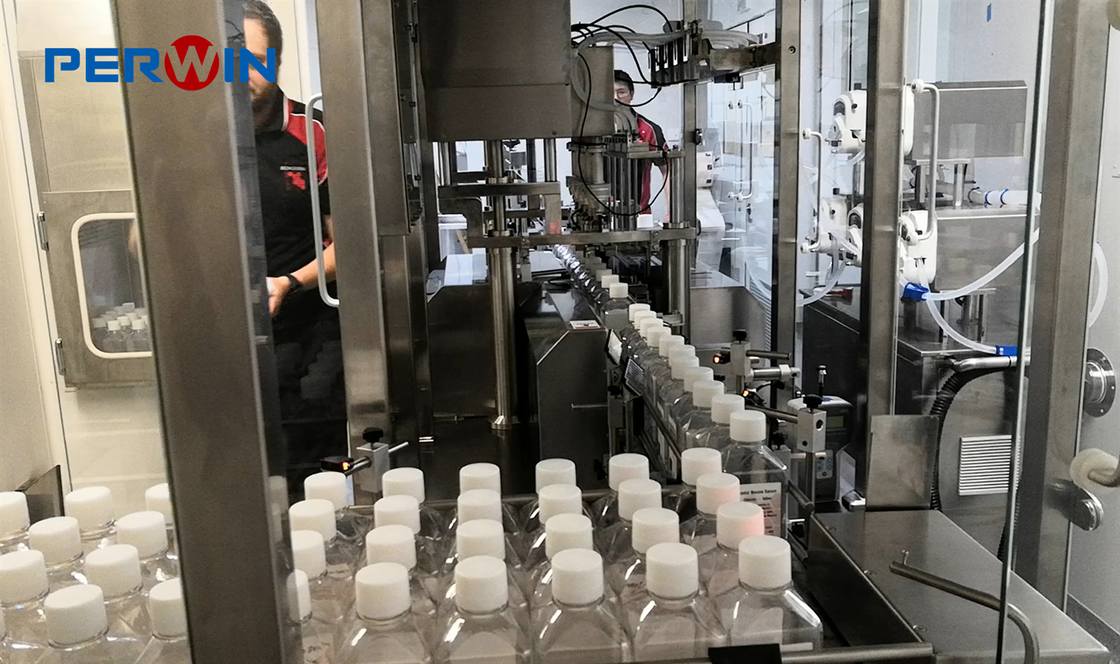

Advanced Bottle Collection Platform Animal Sera Filling Machine

Product Description:

Animal Sera Filling Machine is a special equipment for automatic filling of animal sera. It is widely used in the production of animal blood and serum products. The whole line of equipment is designed and manufactured according to the requirements of GMP. It has high safety, high precision, high automation, and reliable performance. The main features of the Animal Sera Filling Machine are as follows:

• Air Pressure: 0.6-0.8Mpa
• Security: 304 Stainless Steel Frame, Tempered Glass Cover. Open The Door To Stop; Emergency Stop Device, Earth Leakage Protection. HEPA Can Be Installed
• Working flow: Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform
• Power Consumption: 10KW For Whole Line
• Printing: Zebra Thermo Transfer Printer

The Animal Sera Filling Machine is equipped with advanced control system and operation interface. It can display the operating parameters and data in real time. The machine has high precision filling and capping. It is equipped with a weighing system to ensure accurate filling. It is fast and stable in production, and it can meet the requirements of GMP. All materials in contact with the product are made of 304 stainless steel and will not contaminate the product. The Animal Sera Filling Machine can be used for the filling of animal sera, animal blood, and other liquid products.

Features:

• Product Name: Animal Sera Filling Machine
• Buffer bag: Single Use Buffer Bag With Pipes And Filling Nozzles
• PLC: Siemens 1500
• Filling Nozzle: Five/Six/Seven/Eight
• Filling method: 5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen
• Special Feature: Animal Sera Aseptic Filling Device, Animal Blood Filler, Fetal bovine serum filling machine

Technical Parameters:

Applications:

The Animal Serum Filling Machine, produced by PERWIN with model number PW-ZWGX550, is a highly effective and reliable FBS filling machine. It is ISO, GMP, UL, TUV, SGS certified and is available in minimum order quantity of 1. The price of the machine is negotiable, and it is packaged using Export Standard Wooden Cases. It is delivered within 60 working days after payment. The company can supply 10pcs/month. It comes with torque control method of Servo Technology, with 5 Sets Of Capping Units, Each Set Of Servo Motors Are Individually Controlled, Clockwise Capping And Anti-clockwise Capping. It has a filling head of Five/Six/Seven/Eight and filling accuracy of ±0.5~1%. The dimension of the machine is 3000*900*1800mm. It is manufactured in Qidong, Jiangsu.

Customization:

Animal Sera Aseptic Filling Device is a high-tech product manufactured by PERWIN with model number PW-ZWGX550. It is certified with CE, ISO, GMP, UL, TUV and SGS, and the minimum order quantity is 1. The price is negotiable, and it is packaged in export standard wooden cases. The delivery time is 60 working days with payment term of TT. The supply ability is 10pcs/month. It adopts a set of servo motor drive screw for positioning, with dimension of 3000*900*1800mm. It also comes with single use buffer bag with pipes and filling nozzles. The filling temperature ranges from 0 to 100℃, and the printing system is Zebra thermo transfer printer. It is suitable for filling fetal bovine serum and animal plasma aseptic filling line.

Support and Services:

We provide comprehensive technical support and service for Animal Sera Filling Machine. Our experienced team is available to provide rapid, reliable assistance for installation, operation, maintenance, troubleshooting, and other technical issues. We offer service and parts for a wide range of Animal Sera Filling Machine products.

Our service capabilities include:

• On-site installation and maintenance
• Remote troubleshooting and support
• Training for operators and technicians
• Replacement parts and components

We are dedicated to keeping your Animal Sera Filling Machine running optimally and efficiently. Contact us today for more information about our technical support and service options.

FAQ:

Q: What is the Brand Name of Animal Sera Filling Machine?

A: The Brand Name of Animal Sera Filling Machine is PERWIN.

Q: What is the Model Number of Animal Sera Filling Machine?

A: The Model Number of Animal Sera Filling Machine is PW-ZWGX550.

Q: Where is Animal Sera Filling Machine made?

A: Animal Sera Filling Machine is made in Qidong, Jiangsu.

Q: What certifications does Animal Sera Filling Machine have?

A: Animal Sera Filling Machine has CE, ISO, GMP, UL, TUV, SGS certifications.

Q: How many Animal Sera Filling Machine can I order?

A: The minimum order quantity of Animal Sera Filling Machine is 1.
