Product Details
Place of Origin: Shanghai
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Buffer Bag: |
Single Use Buffer Bag With Pipes And Filling Nozzles |
Pneumatic Components: |
SMC Or Festo |
Labeling Machine: |
Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning |
Working Flow: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Working Process: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Filling Accuracy: |
±0.5~1% |
Rejection Unit: |
Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Correspo |
Filling Clean Area: |
Divided Into Three Zones, Q1, Q2, Q3, All Are C+A, But Each Zone Has A Difference In Wind Speed |
Buffer Bag: |
Single Use Buffer Bag With Pipes And Filling Nozzles |
Pneumatic Components: |
SMC Or Festo |
Labeling Machine: |
Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning |
Working Flow: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Working Process: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Filling Accuracy: |
±0.5~1% |
Rejection Unit: |
Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Correspo |
Filling Clean Area: |
Divided Into Three Zones, Q1, Q2, Q3, All Are C+A, But Each Zone Has A Difference In Wind Speed |

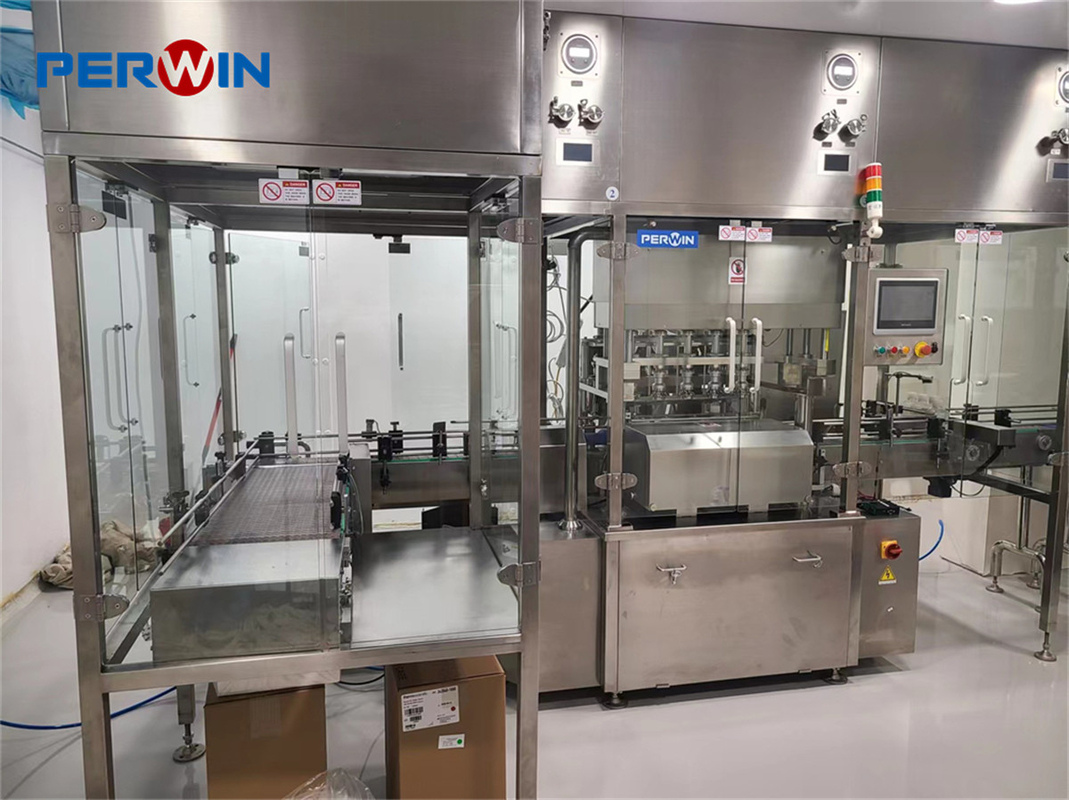

The Animal Sera Aseptic Filling Device also comes equipped with a labeling machine that ensures mechanical synchronization of top pressure positioning mechanism, horizontal positioning mechanism, and conveyor belt. The three-in-one power feature ensures accurate and stable positioning, which is essential for filling animal sera and fetal bovine serum.
Weighing in at 1000kg, our machine is built to last and handle heavy-duty filling requirements. The weighing unit of the machine comes with a Mettler Load Cell + Controller that ensures accurate measurements. The machine requires a marble floor installation foundation to ensure stability and durability.
To ensure that you can keep track of your animal serum bottles, our machine comes with a Zebra Thermo Transfer Printer that allows you to print labels on the bottles. The printer ensures that the labels are of high quality and can withstand extreme environmental conditions.
Our Animal Sera Filling Machine is built to cater to all your animal serum filling needs. With its high-quality features and precision, you can rest assured that your animal serum filling needs will be met with ease. Get in touch with us today to learn more about our product and how it can help you with your requirements.
Fetal bovine serum filling machine, Animal Blood Filler, Animal sera filling machine
| Filling Nozzle | Five/Six/Seven/Eight |
| Representative customers | Thermofisher, Roche, Abbott, Bovogen, Moregate, X-therma, Sciencell |
| Filling Pressure | 0-0.3Mpa |
| Pneumatic components | SMC Or Festo |
| Material | Stainless Steel |
| Filling clean area | Divided Into Three Zones, Q1, Q2, Q3, All Are C+A, But Each Zone Has A Difference In Wind Speed |
| Environmental monitoring | Online Particle And Planktonic Monitoring System |
| Rejection unit | Automatic Reject Workstation, Conveyor Belt Controlled By Servo Motor. Corresponds To A Group Of 5 Bottles, Each Bottle Corresponds To A Cylinder. Unqualified Bottles Can Be Pushed Into The Corresponding Channel Of The Collection Platform With The Corresponding Cylinder. At The Top Of Each Channel, A Full Bottle Sensor Is Installed |
| Working process | Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform |
| Filling Temperature | 0-100℃ |
The PERWIN PW-ZWGX550 Animal Blood Filler has a variety of applications and can be used in different scenarios such as laboratories, blood banks, animal husbandries, and pharmaceutical companies. The filling nozzle can be customized to accommodate five, six, seven, or eight filling nozzles, depending on the specific needs of the customer.
The pneumatic components used in the PERWIN PW-ZWGX550 Animal Blood Filler are sourced from SMC or Festo, renowned brands in the industry, known for their quality and durability. The PLC used is Siemens 1500, which ensures precise control and efficient operation of the machine.
The PERWIN PW-ZWGX550 Animal Blood Filler has received several certifications, including CE, ISO, GMP, UL, TUV, and SGS, which further reinforce the quality and reliability of the product. The minimum order quantity is 1, and the price is negotiable. The packaging details are export standard wooden cases, and the delivery time is 60 working days.
The PERWIN PW-ZWGX550 Animal Blood Filler can fill products at a temperature between 0-100℃ and a pressure between 0-0.3Mpa. It is easy to operate and maintain, making it an ideal choice for customers looking for an efficient and reliable animal blood filling machine.
With a supply ability of 10pcs/month, the PERWIN PW-ZWGX550 Animal Blood Filler is an excellent investment for companies looking to streamline their animal blood filling operations and increase their production efficiency.
The Animal Sera Filling Machine is a complex piece of equipment that requires technical support and services to ensure its optimal performance. Our team of experts is dedicated to providing you with the following:
- Installation and commissioning services to get your machine up and running
- Operator training to ensure that your staff can operate the machine safely and efficiently
- Preventative maintenance services to keep your machine running smoothly and extend its lifespan
- Technical support to troubleshoot any issues that may arise and provide solutions to minimize downtime
With our technical support and services, you can rest assured that your Animal Sera Filling Machine will always be operating at peak performance.
A: The brand name is PERWIN.
Q: What is the model number of the Animal Sera Filling Machine?
A: The model number is PW-ZWGX550.
Q: Where is the Animal Sera Filling Machine manufactured?
A: The Animal Sera Filling Machine is manufactured in Shanghai.
Q: Does the Animal Sera Filling Machine have any certifications?
A: Yes, the Animal Sera Filling Machine is CE, ISO, GMP, UL, TUV, and SGS certified.
Q: What is the minimum order quantity for the Animal Sera Filling Machine?
A: The minimum order quantity is 1.
Q: What is the price of the Animal Sera Filling Machine?
A: The price is negotiable.
Q: What is the packaging for the Animal Sera Filling Machine?
A: The Animal Sera Filling Machine is packaged in export standard wooden cases.
Q: What is the delivery time for the Animal Sera Filling Machine?
A: The delivery time is 60 working days.
Q: What are the payment terms for the Animal Sera Filling Machine?
A: The payment terms are TT.
Q: What is the supply ability for the Animal Sera Filling Machine?
A: The supply ability is 10pcs/month.
