Product Details
Place of Origin: Shanghai
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-ZWGX550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Power Consumption: |
10KW For Whole Line |
Filling Temperature: |
0-100℃ |
Material: |
Stainless Steel |
Filling Accuracy: |
±0.5~1% |
Power Supply: |
220V/380V/415V/440V |
Working Process: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Environmental Monitoring: |
Online Particle And Planktonic Monitoring System |
Capping Head Lift: |
Servo Motor Control |
Power Consumption: |
10KW For Whole Line |
Filling Temperature: |
0-100℃ |
Material: |
Stainless Steel |
Filling Accuracy: |
±0.5~1% |
Power Supply: |
220V/380V/415V/440V |
Working Process: |
Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat S |
Environmental Monitoring: |
Online Particle And Planktonic Monitoring System |
Capping Head Lift: |
Servo Motor Control |
Equipped with a variety of features that make it the most advanced FBS filling machine in the market, the Animal Sera Filling Machine is the perfect addition to any Animal Sera production line.
The Animal Sera Filling Machine is designed to work with a wide range of power supply options. It can operate on 220V, 380V, 415V, and 440V, ensuring that it can be used in any production facility around the world.
The Animal Sera Filling Machine comes with individually controlled pumps that can be programmed to ensure accurate and precise filling of your Animal Sera products.
The working process of the Animal Sera Filling Machine is simple and efficient. It starts with bottle loading on a powered platform (unpacking station), followed by screw positioning of the bottle, de-capping, and weighing I. The peristaltic pump filling system ensures accurate and precise filling, followed by weighing II and capping. The machine also includes an automatic rejection station for any defective products. The finished products are then sent to the packing area, where they undergo automatic sleeve labeling, heat shrinking, and single-side labeling. The bottles are finally collected on a bottle collection platform.
The capping head lift of the Animal Sera Filling Machine is controlled by a servo motor, ensuring accurate and precise capping of your Animal Sera products.
The Animal Sera Filling Machine comes with one set of servo motor drive screws for precise positioning and separation of bottles, ensuring accurate and efficient filling of your Animal Sera products.
Overall, the Animal Sera Filling Machine is the perfect solution for your Animal Sera production line needs. With its advanced features and efficient design, it is the most advanced FBS filling machine in the market.
Key phrases: Animal Plasma Filling Machine, Animal Sera filling line
| Product Name | Animal Sera filling line |
| Filling clean area | Divided Into Three Zones, Q1, Q2, Q3, All Are C+A, But Each Zone Has A Difference In Wind Speed |
| Weighing unit | Mettler Load Cell + Controller. Marble Floor Installation Foundation |
| Working process | Bottle Loading On Powered Platform (unpacking Station)→ Screw Positioning Bottle → De-capping → Weighing I → Peristaltic Pump Filling→ Weighing II And Capping→Automatic Rejection Station→Finished Products To Packing Area→ Automatic Sleeve Labeling → Heat Shrinking Machine → Single Side Labeling Machine→Bottle Collection Platform |
| Printing | Zebra Thermo Transfer Printer |
| PLC | Siemens 1500 |
| Filling program control | Each Group Of Pumps Is Individually Controlled |
| Pneumatic components | SMC Or Festo |
| Filling Temperature | 0-100℃ |
| Weight | 1000kg |
| Torque control method | Servo Technology |
| Product Type | Fetal bovine serum filling machine |

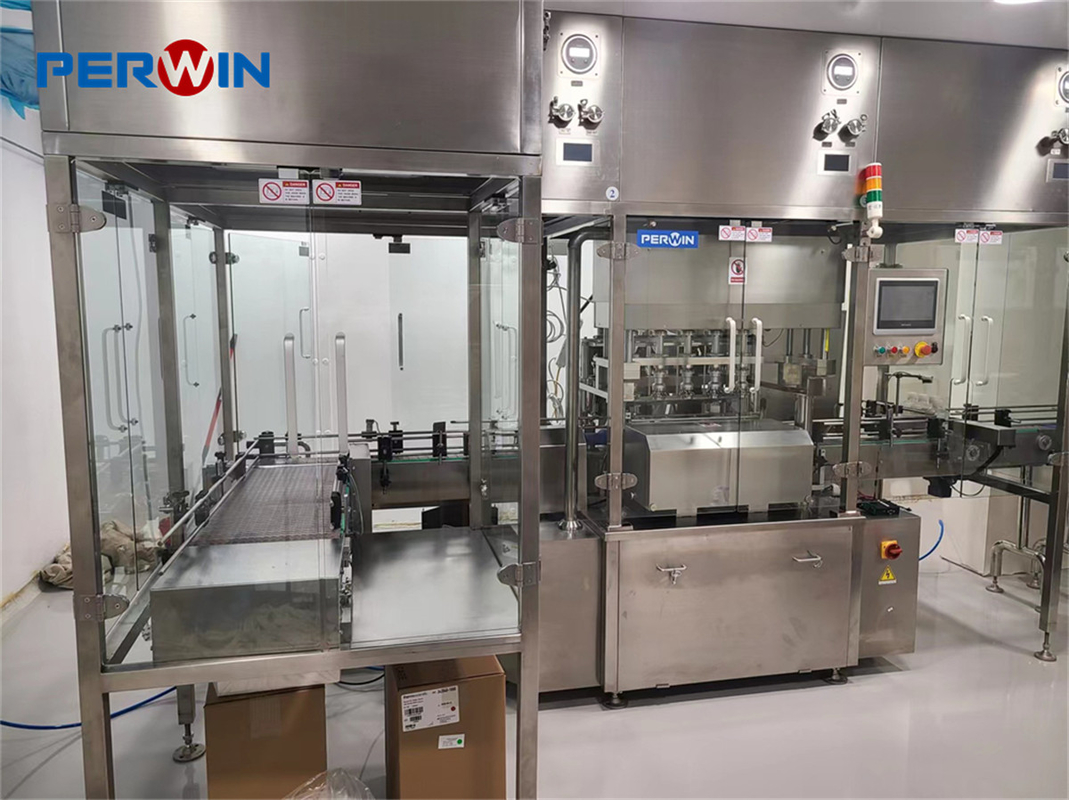

PERWIN PW-ZWGX550 is an animal sera aseptic filling device that is suitable for filling animal plasma and sera. It is equipped with an automatic reject workstation and a conveyor belt controlled by a servo motor. The rejection unit corresponds to a group of 5 bottles, and each bottle corresponds to a cylinder. Unqualified bottles can be pushed into the corresponding channel of the collection platform with the corresponding cylinder. At the top of each channel, a full bottle sensor is installed. The capping head lift is controlled by a servo motor, which ensures smooth and efficient operation.
The filling method of this animal sera filling machine is 5 sets of OEM peristaltic pumps, Watson-Marlow 505L pump heads, driven by servo motors. The filling volume can be set and adjusted on the touch screen. The PLC used in this machine is Siemens 1500, which ensures reliable and stable operation.
PERWIN PW-ZWGX550 is suitable for use in various occasions and scenarios. It can be used in animal vaccine production, animal serum production, and other related fields. With its advanced technology and reliable performance, it is the preferred choice for many animal sera aseptic filling lines.
Order your PERWIN PW-ZWGX550 animal sera filling machine today and experience its superior performance and efficiency!
The Animal Sera Filling Machine is a state-of-the-art product designed to provide reliable and accurate filling of animal sera. Our technical support team is available to assist with any issues you may encounter during setup, operation, or maintenance of the machine. We also offer a range of services to ensure optimal performance of your machine, including:
Our team of experienced professionals is dedicated to ensuring your satisfaction with the Animal Sera Filling Machine. Contact us today to learn more about our support and services.
Frequently Asked Questions:
Q: What is the brand name of this filling machine?
A: The brand name is PERWIN.
Q: What is the model number of this filling machine?
A: The model number is PW-ZWGX550.
Q: Where is this filling machine manufactured?
A: It is manufactured in Shanghai, China.
Q: What certifications does this filling machine have?
A: It has CE, ISO, GMP, UL, TUV, and SGS certifications.
Q: What is the minimum order quantity for this filling machine?
A: The minimum order quantity is 1.
Q: What is the price of this filling machine?
A: The price is negotiable.
Q: What are the packaging details for this filling machine?
A: It comes in export standard wooden cases.
Q: What is the delivery time for this filling machine?
A: The delivery time is 60 working days.
Q: What are the payment terms for this filling machine?
A: The payment terms are TT.
Q: What is the supply ability for this filling machine?
A: The supply ability is 10pcs/month.
