Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-HWGX220
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Metering Method: |
Four-channel Longer DPOFLEXTM PFS Precision Peristaltic Pump; Filling 30µl~10ml; Accuracy Is ±0.5%; Each Channel Can Be Set And Adjusted Independently; 7-inch High-definition LCD Screen. (21 CFR Part 11 And EU Annex 11 Standards) |
Filling Accuracy: |
±0.5% |
Double Station Stoppering: |
The Mechanical Arm Sucks The Rubber Stoppers Of The Two Channels Respectively With Negative Pressure And Swings 90° To Press Them On The Bottle Mouth. Partial Stoppering And Full Stoppering Process Requirements Can Be Completed As Required |
Filling Nozzle Lifting: |
The Cam Mechanism Controls The Lifting Of The Filling Nozzle To Prevent Liquid Splashing |
Compressed Air: |
0.4～0.7Mpa |
Online Detect: |
Leaked Filling, Detection And Rejection Of Bottles With No Bungs |
HMI: |
Schneider Or Siemens |
Capping Unit: |
In Order To Ensure The Quality Of Capping: This Unit Consists Of Two Parts: Pre-capping And Capping; Double-station Pre-capping: The Mechanical Arms Automatically Pick Up The Two Bottle Caps Sorted By The Vibrating Plate And Puts Them On The Bottle Mouths |
Metering Method: |
Four-channel Longer DPOFLEXTM PFS Precision Peristaltic Pump; Filling 30µl~10ml; Accuracy Is ±0.5%; Each Channel Can Be Set And Adjusted Independently; 7-inch High-definition LCD Screen. (21 CFR Part 11 And EU Annex 11 Standards) |
Filling Accuracy: |
±0.5% |
Double Station Stoppering: |
The Mechanical Arm Sucks The Rubber Stoppers Of The Two Channels Respectively With Negative Pressure And Swings 90° To Press Them On The Bottle Mouth. Partial Stoppering And Full Stoppering Process Requirements Can Be Completed As Required |
Filling Nozzle Lifting: |
The Cam Mechanism Controls The Lifting Of The Filling Nozzle To Prevent Liquid Splashing |
Compressed Air: |
0.4～0.7Mpa |
Online Detect: |
Leaked Filling, Detection And Rejection Of Bottles With No Bungs |
HMI: |
Schneider Or Siemens |
Capping Unit: |
In Order To Ensure The Quality Of Capping: This Unit Consists Of Two Parts: Pre-capping And Capping; Double-station Pre-capping: The Mechanical Arms Automatically Pick Up The Two Bottle Caps Sorted By The Vibrating Plate And Puts Them On The Bottle Mouths |
Our Vial Filling Line uses a positioning filling method that ensures accurate filling of vials. For 10ml specification products, the equipment fills the vials twice, 5ml each time, using independent peristaltic pumps. This ensures that the production capacity is met, and that the filling process is accurate and efficient. The equipment also has a filling range of 0.5ml to 10ml, making it versatile and suitable for a wide range of products.
The Vial Filling Line also comes equipped with a vertical round vial labeling machine that can label vials with great precision. The labeling machine is also designed with a 600mm buffer turntable that allows for easy changing of label rolls without stopping the upstream equipment. This ensures that the labeling process is efficient and does not cause any delays in production.
In addition, the equipment is designed with partial bunging capabilities. If the product is to be freeze-dried, it needs to be collected in trays after partial bunging. This ensures that the freeze-drying process is efficient and that the product is properly preserved. The equipment also has online detection capabilities that enable it to detect leaked filling and reject bottles with no bungs. This ensures that the product is of high quality and that there are no defects in the final product.
Overall, our Vial Filling Line product is a top-of-the-line vial bottling equipment that is designed for accuracy, efficiency, and versatility. Its positioning filling method, labeling capabilities, and partial bunging features make it an ideal choice for pharmaceutical companies, clinical labs, and other industries that require precise and reliable vial bottling equipment. Invest in our Vial Filling Line today and take your production to the next level!
| Automated Vial Filler Technical Parameters | |
|---|---|
| Vial loading method | 600mm Turntable |
| HMI | Schneider Or Siemens |
| Vial volume | 5ml And 10ml Glass Vials(filling From 0.5ml To 10ml) |
| Filling range | 0.5ml~10ml |
| Capping unit | In Order To Ensure The Quality Of Capping: This Unit Consists Of Two Parts: Pre-capping And Capping; Double-station Pre-capping: The Mechanical Arms Automatically Pick Up The Two Bottle Caps Sorted By The Vibrating Plate And Puts Them On The Bottle Mouths Of The Two Bottles Corresponding To The Star Wheel Station And Screw The Bottle Caps Onto The Bottle Mouths; Double-station Screw Cap: Tighten The Cap Of The Pre-screwed Bottles |
| Printer | Thermal Transfer Printer; Zebra; ZE500-4-3 300dpi |
| Online detect | Leaked Filling, Detection And Rejection Of Bottles With No Bungs |
| Compressed air | 0.4～0.7Mpa |
| Filling nozzle lifting | The Cam Mechanism Controls The Lifting Of The Filling Nozzle To Prevent Liquid Splashing |
| PLC | Schneider Or Siemens |
The PERWIN PW-HWGX220 Vial Filling Machine is an automated vial filler that is perfect for a wide range of vial packaging line applications. This product is designed and manufactured in Qidong, Jiangsu, and is certified with CE, ISO, GMP, UL, TUV, and SGS certifications. The minimum order quantity is 1, and the price is negotiable. The product is packed in export standard wooden cases and has a delivery time of 60 working days. Payment terms are TT, and the supply ability is 10pcs/month.
The PLC of the PERWIN PW-HWGX220 Vial Filling Machine is either Schneider or Siemens, which makes it reliable and efficient. The labeling machine is a vertical round vial labeling machine and is equipped with a 600mm buffer turntable, which can change the label roll without stopping the upstream equipment. The double station stoppering feature is also available, where the mechanical arm sucks the rubber stoppers of the two channels respectively with negative pressure and swings 90° to press them on the bottle mouth. Partial stoppering and full stoppering process requirements can be completed as required. After filling and stoppering, the product directly enters the capping machine for capping.

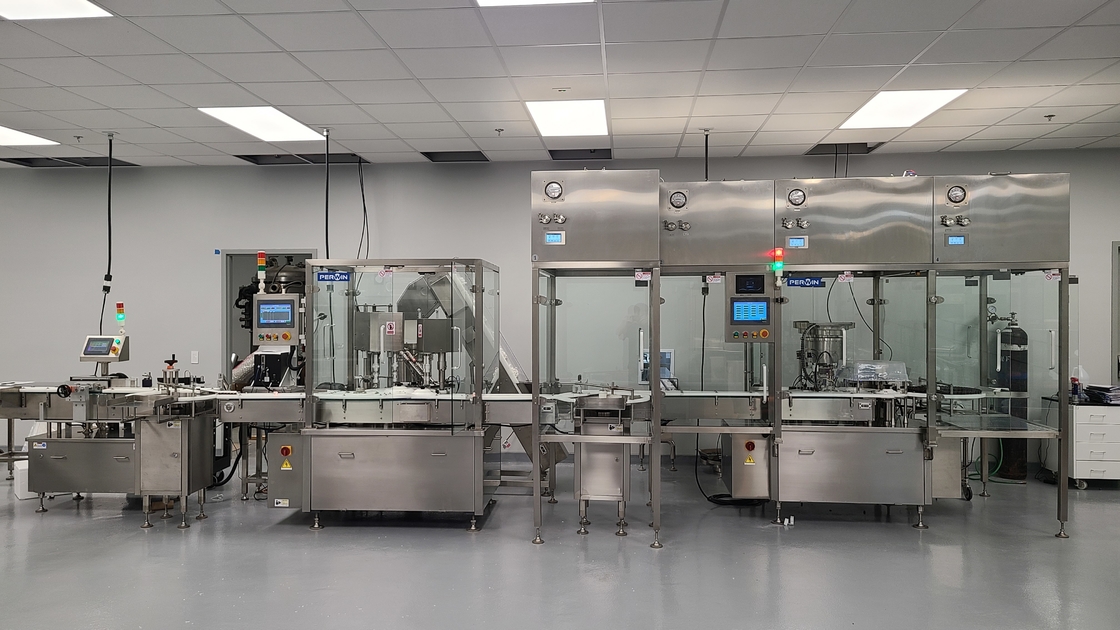

The PERWIN PW-HWGX220 Vial Filling Machine has a working process that includes vial loading on a 600mm turntable, double-station argon filling twice and liquid filling (10ml product, filled in two times), double-station automatic stoppering + detection and rejection station (leaky filling, no stopper), (half stoppering collection station), (products which were frozen drying were loaded on a 600mm turntable), double-station capping machine (pre-screwing cap + capping), and (customer option: 600mm labeling buffer turntable + small round vial vertical labeling machine).
The PERWIN PW-HWGX220 Vial Filling Machine is perfect for various product application occasions and scenarios, such as pharmaceuticals, biotech, cosmetics, and more. It is ideal for filling small vials with high accuracy and speed. The automated vial filler is easy to operate and maintain, making it perfect for small to medium-sized businesses. It is also suitable for large production facilities that require a reliable and efficient vial filling machine.
The Vial Filling Line product is designed to provide efficient and reliable filling of vials in a variety of industries. Our team of experienced technicians and engineers are available to provide technical support and services to ensure the optimal performance of the product. Our services include:
Our goal is to ensure that our customers receive the best possible support for their Vial Filling Line to maximize productivity and minimize downtime.
