Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-HWGX220
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Filling Method: |
Positioning Filling; In Order To Meet The Production Capacity, The 10ml Specification Product Is Filled Twice, 5ml Each Time, Each Time Is Filled By An Independent Peristaltic Pump |
Double Station Stoppering: |
The Mechanical Arm Sucks The Rubber Stoppers Of The Two Channels Respectively With Negative Pressure And Swings 90° To Press Them On The Bottle Mouth. Partial Stoppering And Full Stoppering Process Requirements Can Be Completed As Required |
Online Detect: |
Leaked Filling, Detection And Rejection Of Bottles With No Bungs |
Full Bunging: |
After Filling And Stoppering, It Directly Enters The Capping Machine For Capping |
Filling Range: |
0.5ml~10ml |
Output: |
60~80bpm |
PLC: |
Schneider Or Siemens |
Production Line Composition: |
Turntable With A Diameter Of 600mm → Double-station Filling And Stoppering Machine → Double-station Capping Machine → Labeling Machine (Optional) |
Filling Method: |
Positioning Filling; In Order To Meet The Production Capacity, The 10ml Specification Product Is Filled Twice, 5ml Each Time, Each Time Is Filled By An Independent Peristaltic Pump |
Double Station Stoppering: |
The Mechanical Arm Sucks The Rubber Stoppers Of The Two Channels Respectively With Negative Pressure And Swings 90° To Press Them On The Bottle Mouth. Partial Stoppering And Full Stoppering Process Requirements Can Be Completed As Required |
Online Detect: |
Leaked Filling, Detection And Rejection Of Bottles With No Bungs |
Full Bunging: |
After Filling And Stoppering, It Directly Enters The Capping Machine For Capping |
Filling Range: |
0.5ml~10ml |
Output: |
60~80bpm |
PLC: |
Schneider Or Siemens |
Production Line Composition: |
Turntable With A Diameter Of 600mm → Double-station Filling And Stoppering Machine → Double-station Capping Machine → Labeling Machine (Optional) |
The filling method used in the Vial Filling System is positioning filling. In order to meet the production capacity, the 10ml specification product is filled twice, 5ml each time, and each time is filled by an independent peristaltic pump. The main motor of the system is an ABB motor.
The Vial Sealing Machine is designed to seal the vials filled by the Vial Filling System. Together, these two machines form the Vial Packaging Line.
Keywords: Vial Filling Machine, Vial Filling System, Vial Labeling System
| Technical Parameter | Description |
|---|---|
| Pneumatic components | Festo or SMC |
| PLC | Schneider or Siemens |
| Main motor | ABB |
| Compressed air | 0.4～0.7Mpa |
| Filling range | 0.5ml~10ml |
| Capping unit | In order to ensure the quality of capping: This unit consists of two parts: Pre-capping and capping; Double-station pre-capping: The mechanical arms automatically pick up the two bottle caps sorted by the vibrating plate and puts them on the bottle mouths of the two bottles corresponding to the star wheel station and screw the bottle caps onto the bottle mouths; Double-station screw cap: Tighten the cap of the pre-screwed bottles |
| Vial volume | 5ml and 10ml glass vials (filling from 0.5ml to 10ml) |
| Laminar flow hood | Equipped with two sets of laminar flow hoods, covering the filling and stoppering area. If the product is a sterile product, a set of laminar flow hoods (optional function) can be added to cover the partial bunging collection station |
| Printer | Thermal transfer printer; Zebra; ZE500-4-3 300dpi |
| Filling accuracy | ±0.5% |

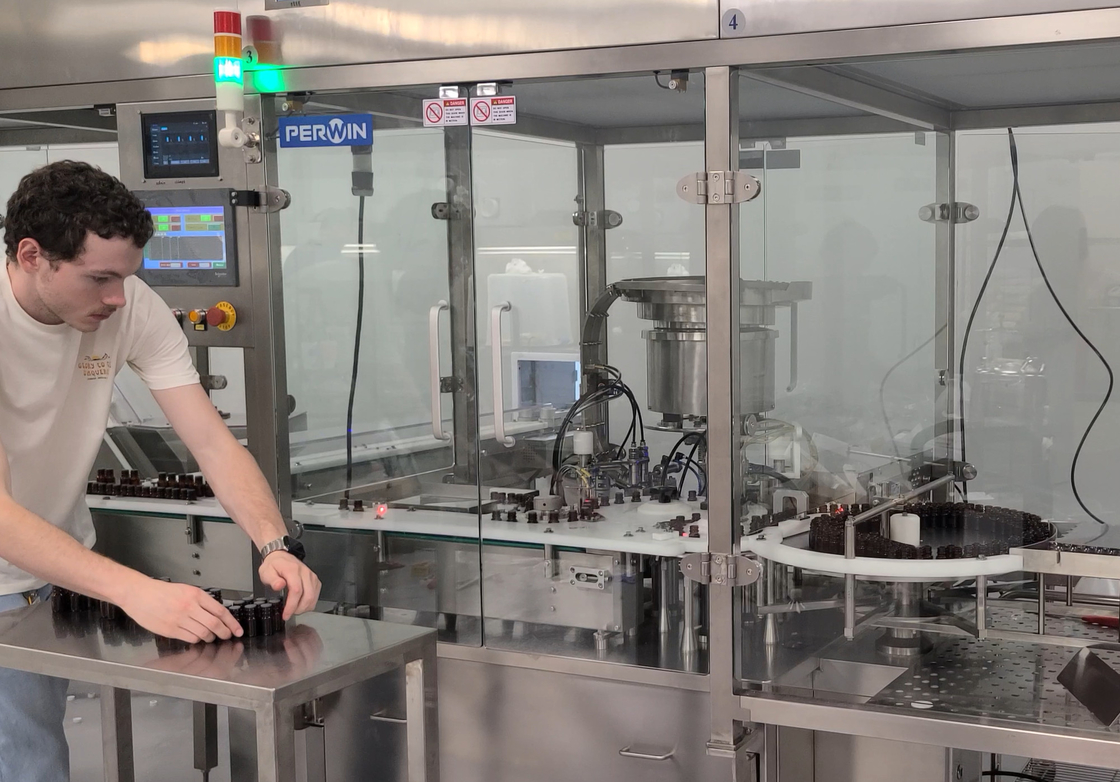

The PERWIN PW-HWGX220 Vial Filling Line is a state-of-the-art vial bottling equipment that is designed to provide reliable and efficient vial filling solutions for pharmaceutical, biotech, and cosmetic industries. Made in Qidong, Jiangsu, this product is CE, ISO, GMP, UL, TUV, and SGS certified, ensuring its quality and performance.
With a minimum order quantity of 1 and a negotiable price, the PERWIN PW-HWGX220 Vial Filling Line comes in export standard wooden cases for packaging and has a delivery time of 60 working days. Payment terms for this product are TT, and it has a supply ability of 10pcs/month.
The main motor of this vial filling system is made by ABB, a leading global supplier of quality electrical motors. The double station stoppering feature of this product is unique and efficient. The mechanical arm sucks the rubber stoppers of the two channels respectively with negative pressure and swings 90° to press them on the bottle mouth. Partial stoppering and full stoppering process requirements can be completed as required.
The PERWIN PW-HWGX220 Vial Filling Line is fitted with either Festo or SMC pneumatic components, which are known for their high-quality and reliability. This system is capable of filling 5ml and 10ml glass vials, filling from 0.5ml to 10ml, making it suitable for various vial filling applications.
The vial labeling system is pre-set with capping torque on the touch screen (HMI), and if the torque is not reached, the servo motor will automatically tighten the cap. When the torque is reached or exceeded, the servo motor will automatically stop capping.
Overall, the PERWIN PW-HWGX220 Vial Filling Line is a reliable and efficient vial bottling equipment that is suitable for various vial filling applications. Its unique features and capabilities make it an excellent choice for pharmaceutical, biotech, and cosmetic industries.
With its high-quality components, efficient filling system, and reliable capping and labeling processes, the PERWIN PW-HWGX220 Vial Filling Line is an excellent investment for any business looking for a reliable and efficient vial filling system.
The Vial Filling Line product comes with comprehensive technical support and services to ensure optimal performance and minimal downtime. Our team of experienced technicians is available for installation, commissioning, and training to ensure that the equipment is set up correctly and operated safely and efficiently. We also offer ongoing maintenance and repair services to keep the equipment running at peak performance. Our technical support team is available 24/7 to provide remote assistance and troubleshooting to minimize any downtime. Additionally, we offer spare parts and upgrades to ensure that the equipment stays up to date and in top condition for years to come.
Q: What is the brand name of this vial filling line?
A: The brand name of this vial filling line is PERWIN.
Q: What is the model number of this vial filling line?
A: The model number of this vial filling line is PW-HWGX220.
Q: Where is this vial filling line manufactured?
A: This vial filling line is manufactured in Qidong, Jiangsu.
Q: What certifications does this vial filling line have?
A: This vial filling line has CE, ISO, GMP, UL, TUV, and SGS certifications.
Q: What is the minimum order quantity for this vial filling line?
A: The minimum order quantity for this vial filling line is 1.
Q: What is the price of this vial filling line?
A: The price of this vial filling line is negotiable.
Q: What are the packaging details for this vial filling line?
A: The packaging details for this vial filling line are export standard wooden cases.
Q: What is the delivery time for this vial filling line?
A: The delivery time for this vial filling line is 60 working days.
Q: What are the payment terms for this vial filling line?
A: The payment terms for this vial filling line are TT.
Q: What is the supply ability of this vial filling line?
A: The supply ability of this vial filling line is 10pcs/month.
