Product Details
Place of Origin: Qidong, Jiangsu
Brand Name: PERWIN
Certification: CE, ISO, GMP, UL, TUV, SGS
Model Number: PW-PP6-7500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Main Machine Length: |
7500mm |
Product Name: |
Petri Dish Filling System |
Dish Shaking Mechanism: |
Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off Dur |
Operation Mode: |
Automatic |
Inkjet Printing: |
The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt |
Sheep Blood Adding System: |
With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
Bi-plates Filling: |
Servo Mechanism Orientation Unit. |
Cooling Time: |
3~5min, Customer Can Set Accordingly. |
Main Machine Length: |
7500mm |
Product Name: |
Petri Dish Filling System |
Dish Shaking Mechanism: |
Especially After Adding Sheep Blood, The Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface Of The Contents Is Smooth And Clean. Increase The Adhesion Between The Contents And The Wall Of The Vessel, To Ensure That It Does Not Fall Off Dur |
Operation Mode: |
Automatic |
Inkjet Printing: |
The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt |
Sheep Blood Adding System: |
With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
Bi-plates Filling: |
Servo Mechanism Orientation Unit. |
Cooling Time: |
3~5min, Customer Can Set Accordingly. |

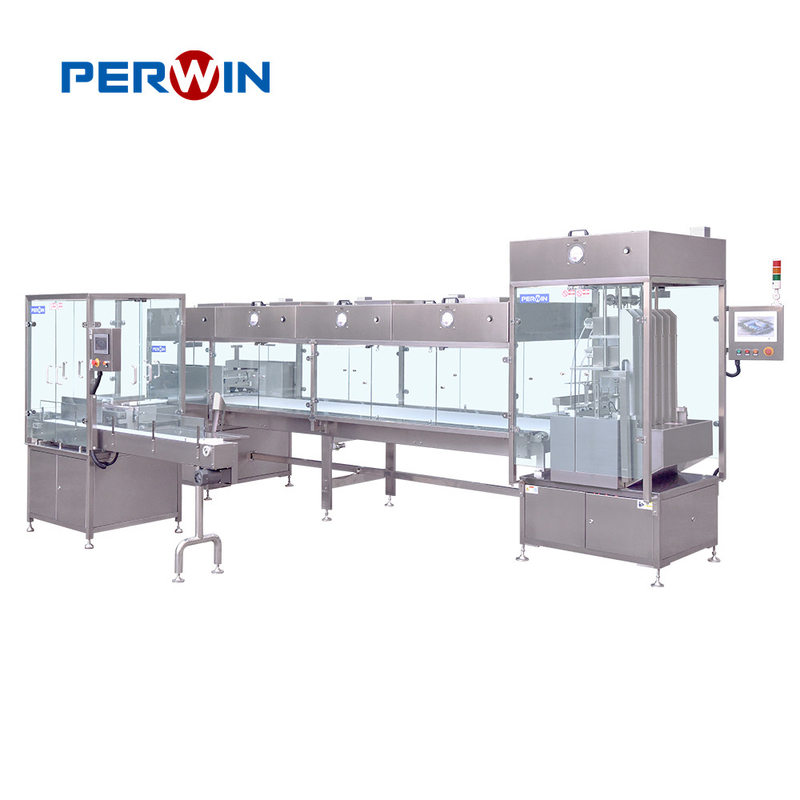

Petri Dish Filling Machine is an advanced automation tool for filling Petri Dishes quickly and accurately. The machine is powered by electricity and equipped with an inkjet printing system that enables to reserve in the conveyor belt holes at the bottom of Petri Dishes. The cooling time of the Petri Dish Filling Machine is adjustable, from 3 to 5 minutes. The filling speed is adjustable too, ranging from 2000 to 3000 dishes per hour. What is more, the machine has a fast format changing time, within 30 minutes. With Petri Dish Filling Machine, you can automate the whole process of filling Petri Dishes with a few simple operations. Let the machine take care of the filling process and free up your time for other tasks.
| Parameters | Specifications |
|---|---|
| Format changing time | Within 30mins |
| Filling Speed | 2000~3000dishes/hour |
| Capping method | Servo Technology Control Fixed-point Cap Closing |
| Filling volume | 4ml~70ml |
| Main machine length | 7500mm |
| Changeover parts | 90mm Single Area Dish, 90mm Bi-plate Dish |
| Inkjet printing | The Inkjet Printing Holes At The Bottom Of The Petri Dish Are Reserved In The Conveyor Belt |
| Weight | 1500kgs |
| Filling Accuracy | ±1~3% |
| Bi-plates filling | Servo Mechanism Orientation Unit |
PERWIN PW-PP6-7500 Petri Dish Filling Machines are produced in Qidong, Jiangsu and are certified by CE, ISO, GMP, UL, TUV, and SGS. The minimum order quantity is 1 and the price is negotiable. The machines are shipped in Export Standard Wooden Cases and the delivery time is 60 working days. Payment terms are TT and the supply ability is 10pcs/month. All machines are built with a SS304 Frame and a Tempered Glass for safety protection. The production speed is cooling for 3 minutes and 3000 pieces/hour. The filling needle insulation helps prevent the liquid at the filling needle from cooling down too fast when the production is suspended, and prevent the liquid from solidifying and blocking the filling needle. The outlet temperature of the stainless steel filling needle can be controlled at 40~45° (customers can choose to maintain a certain temperature in the silicone tube as well). The format changing time is within 30mins and the bi-plates filling is servo mechanism orientation unit.
Brand Name: PERWIN
Model Number: PW-PP6-7500
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Features:
PERWIN PW-PP6-7500 Petri Dish Filling Mechanism is a professional Petri Dish Filling Device designed for filling Petri Dishes. It is a high-precision Petri Dish Filling Equipment with a complete Petri Dish Filling System. It is suitable for mass production in the laboratory.
We provide technical support for Petri Dish Filling Machine, including:
If you need any assistance with your Petri Dish Filling Machine, please contact us at example@example.com.
