Convenient and Durable 220V/380V Power Supply Animal Vaccine Filling Line

Product Description:

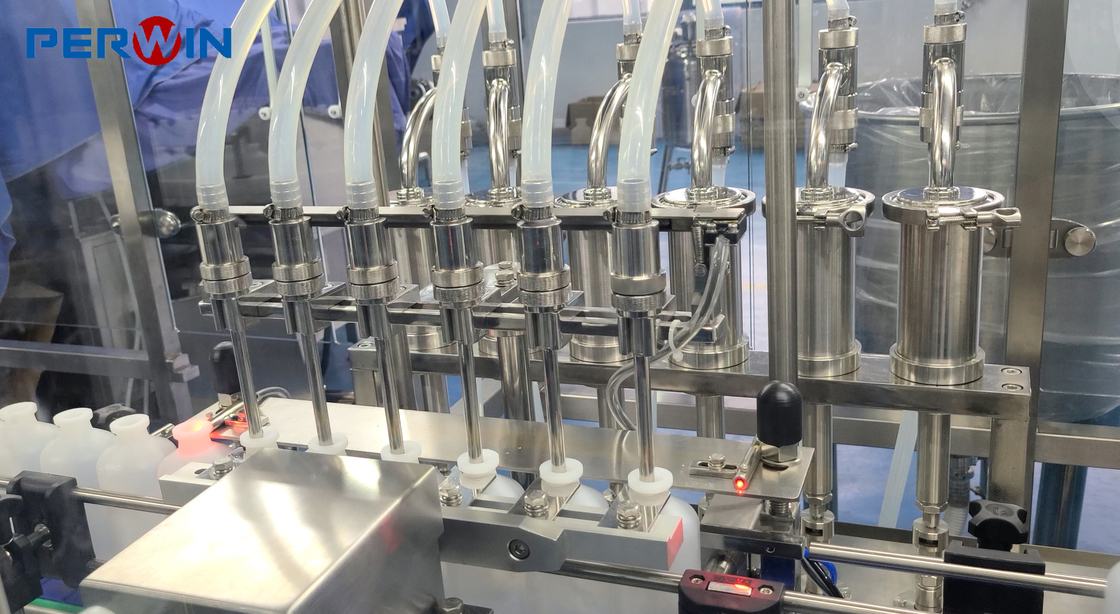

Animal vaccine aseptic filling machine is an automated production line for the filling of liquid animal vaccines. It is equipped with 12 groups of 316L piston pumps, each driven by a servo motor to control the filling needle lifting type filling, and the filling needle deviation alarm stop function. The whole line is controlled by PLC intelligent linkage, and is operated with a touch screen control, with a counting function. Vibratory bowl is adopted for cap feeding, and the mechanical arm automatically removes the stopper and presses it. The labeling machine has functions such as label remaining detection and alarm. The equipment safety cover is made of 304 stainless steel with tempered glass. The whole system ensures aseptic filling process and accuracy.

Features:

• Product Name: Animal Vaccine Filling Line
• Quality control: No Stopper Rejection; No Alu Cap Rejection; Less Fill And Over Fill Rejection
• Stoppering method: Precise CAM-driven Mechanical Arm Negative Pressure Plug Taking And Stoppering
• Filling Speed: 30pcs/min
• Stoppering feeding: Vibratory Bowl
• Detection and rejection: No Stopper And No Cap Detection And Rejection Automatically
• Animal vaccine aseptic filling machine
• Animal vaccine filling and capping machine
• Aseptic filling machine for animal vaccine
• Vaccine filling line

Technical Parameters:

Applications:

Customization:

Brand Name: PERWIN
Model Number: PW-ZGS610
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month

PERWIN PW-ZGS610 Animal Vaccine Filling Line is an aseptic filling machine for animal vaccine. It features high filling accuracy of ±0.5~2%, aluminum cap unscrambler machine, three-knife cap rolling machine with counting function equipment, 304 stainless steel safety cover with tempered glass, and weigh module controls high and low liquid levels. Moreover, it is equipped with Zebra brand thermal transfer printer, workbench + label buffer + control, and 0.4 ~ 0.8Mpa compressed air.

Support and Services:

• Assistance with installation, start-up, and training for operators
• 24/7 technical support for troubleshooting and maintenance
• Regular maintenance to ensure efficient and safe operation
• Warranty and post-warranty service
• Access to spare parts
• Remote technical guidance and remote monitoring
• Customized software and hardware solutions

FAQ:

Q: What is the brand name of the Animal Vaccine Filling Line?
A: The brand name of the Animal Vaccine Filling Line is PERWIN.

Q: What is the model number of the Animal Vaccine Filling Line?
A: The model number of the Animal Vaccine Filling Line is PW-ZGS610.

Q: Where is the Animal Vaccine Filling Line manufactured?
A: The Animal Vaccine Filling Line is manufactured in Qidong, Jiangsu.

Q: What certifications does the Animal Vaccine Filling Line have?
A: The Animal Vaccine Filling Line has CE, ISO, GMP, UL, TUV, and SGS certifications.

Q: How many Animal Vaccine Filling Lines can be supplied each month?
A: 10 Animal Vaccine Filling Lines can be supplied each month.
