Digital Control Test Tube 2 Head 3ml Aseptic Filling Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: PERWIN

Certification: CE, SGS, TUV, ISO9001

Model Number: PW-HGX211

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Standard export woodern cases

Delivery Time: 30~90 working days

Payment Terms: T/T, L/C

Supply Ability: 5 sets/months

Get Best Price
Contact Now
Specifications
Highlight:

2 head aseptic filling machine

,

3ml rotary filling and sealing machine

,

3ml aseptic filling machine

Product Name:
Plc System Automatic Liquid Filling Machine For Test Tube 3ml
Filling Volume:
5ml
Filling Pump:
Peristaltic Pump
Accuracy:
±1~2%
Speed:
60~80 Bottles Per Minute
Certificate:
CE, FDA, SGS, TUV, ISO9001
Product Name:
Plc System Automatic Liquid Filling Machine For Test Tube 3ml
Filling Volume:
5ml
Filling Pump:
Peristaltic Pump
Accuracy:
±1~2%
Speed:
60~80 Bottles Per Minute
Certificate:
CE, FDA, SGS, TUV, ISO9001
Description

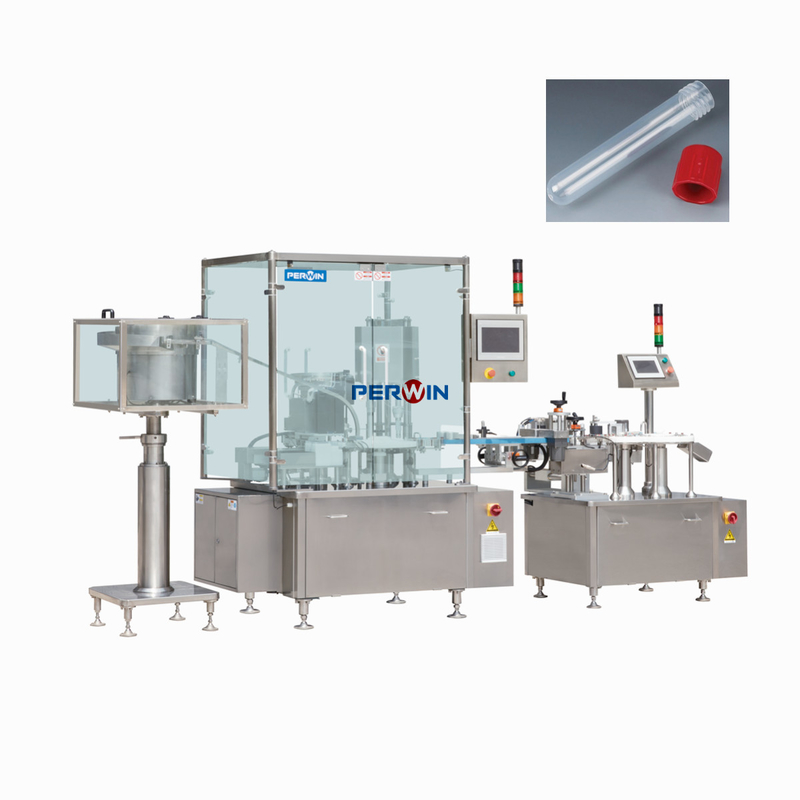

Digital Control Test Tube 2 Head 3ml Aseptic Filling Machine

 Digital Control Small Rotary Bottle Filling And Capping Machine For Test Tube





Company Introduction

  • Shanghai PERWIN Packing Machinery Co., Ltd. was founded in November 1999, and became a member of China Association for Pharmaceutical Equipment(CAPE), standing director unit of China Association of Laboratory Medicine Products and passed ISO9001:2008 international quality system certification in these years. PERWIN has been focusing on the R & D, manufacturing and sales of the Liquid Filling Production Line Equipment, Sticker Labeling Machine and induction sealer, which are widely used in fields of in vitro diagnostics (IVD), pharmaceutical, chemical, food and other industries. As the main production site, Jiangsu PERWIN Science and Technology Co., Ltd was founded in January, 2011.

Digital Control Test Tube 2 Head 3ml Aseptic Filling Machine 0

Parameters



No. Working flow and parameters Bottle filling and capping machine
1 Test tube sorting method. Automatic tube unscrambler with clamping system.
2 Tube entering method. Tube entering into a track; Linear feeder assists in entering the guide star wheel.
3 Filling method. 2 sets of OEM peristaltic pumps, dual-channel pump head, stepper system drive, PERWIN assembly.
4 Capping method The cam-driven mechanical arm automatically take the cap and pre-cap it, and then turns it to the next station for the second time capping.
5 Torque control. Servo technology control, adjust the torque value.
6 Connection with labeling machine. A set of clamping and conveying mechanism.
7 Labeling method. Vertical positioning labeling machine, labeling accuracy is ±0.5mm.
8 Production capacity 60~80pcs/min.
9 Printer Zebra
10 Control method Whole line PLC intelligent linkage, touch screen control, counting function.
11 Power Single phase: 110V or 220V; Three phase 208V or 480V
12 Compressed air 0.4~0.8Mpa



Main configuration:

Item Brand Origin
PLC Siemens Germany
Touch screen FUJI Japan
Server motor Panasonic Japan
VFD Mitsubishi Japan
Photoelectric sensor SICK Germany
Main low voltage electric parts Schneider France
Pneumatic components Festo Germany

FAQ

1. Are you trading company or manufacturer?

  • We are manufacturer of 21 years experience specialized in Pharma and IVD area. We have our own R&D team, sales team, purchasing team, production team and service team located in Shanghai and Jiangsu. We have 110 employees and over 8000 square meters production area.



2. How to install the machine when customers from overseas received the machine?

  • Customers install the machine through remote support from Perwin.
  • Perwin send engineers to customers country.
  • Perwin have overseas service engineers in USA, Europe and South Asia.
  • Perwin provide manuals, trouble shootings, diagrams and drawings to customers.
