Product Details
Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-HGX211
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export woodern cases
Delivery Time: 30~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Product Name: |
Automatic Filling Machine For Liquid 2ml 3ml 5ml 7ml Cryovial |
Filling Volume: |
1ml |
Filling Pump: |
Peristaltic Pump |
Accuracy: |
±1~2% |
Speed: |
60~80 Bottles Per Minute |
Product Name: |
Automatic Filling Machine For Liquid 2ml 3ml 5ml 7ml Cryovial |
Filling Volume: |
1ml |
Filling Pump: |
Peristaltic Pump |
Accuracy: |
±1~2% |
Speed: |
60~80 Bottles Per Minute |

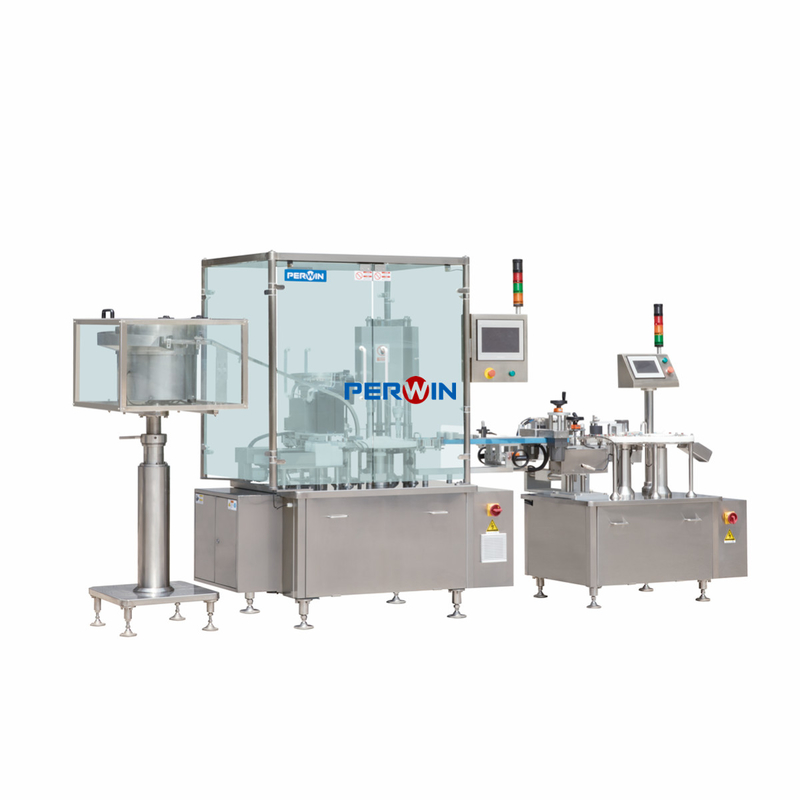

Automatic Filling Machine For Liquid 2ml 3ml 5ml 7ml Cryovial
Parameters
| No. | Working flow and parameters | Automatic filling machine for liquid |
| 1 | Test tube sorting method. | Automatic tube unscrambler with clamping system. |
| 2 | Tube entering method. | Tube entering into a track; Linear feeder assists in entering the guide star wheel. |
| 3 | Filling method. | 2 sets of OEM peristaltic pumps, dual-channel pump head, stepper system drive, PERWIN assembly. |
| 4 | Capping method | The cam-driven mechanical arm automatically take the cap and pre-cap it, and then turns it to the next station for the second time capping. |
| 5 | Torque control. | Servo technology control, adjust the torque value. |
| 6 | Connection with labeling machine. | A set of clamping and conveying mechanism. |
| 7 | Labeling method. | Vertical positioning labeling machine, labeling accuracy is ±0.5mm. |
| 8 | Production capacity | 60~80pcs/min. |
| 9 | Printer | Zebra |
| 10 | Control method | Whole line PLC intelligent linkage, touch screen control, counting function. |
| 11 | Power | Single phase: 110V or 220V; Three phase 208V or 480V |
| 12 | Compressed air | 0.4~0.8Mpa |
1. Are you trading company or manufacturer?
2. How to install the machine when customers from overseas received the machine?
