Product Details
Place of Origin: Jiangsu, China
Brand Name: PERWIN
Certification: CE, SGS, TUV, ISO9001
Model Number: PW-HGX211
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 30000
Packaging Details: Standard export woodern cases
Delivery Time: 30~90 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets/months
Product Name: |
Automated Bottle Filling Machine For Screw Tube 3ml |
FILLING Capacity: |
60~80 Bottles Per Minute |
Filling Volume: |
3ml |
Filling Method: |
Linear Pump |
Accuracy: |
±0.5~1% |
Power: |
3KW |
Product Name: |
Automated Bottle Filling Machine For Screw Tube 3ml |
FILLING Capacity: |
60~80 Bottles Per Minute |
Filling Volume: |
3ml |
Filling Method: |
Linear Pump |
Accuracy: |
±0.5~1% |
Power: |
3KW |

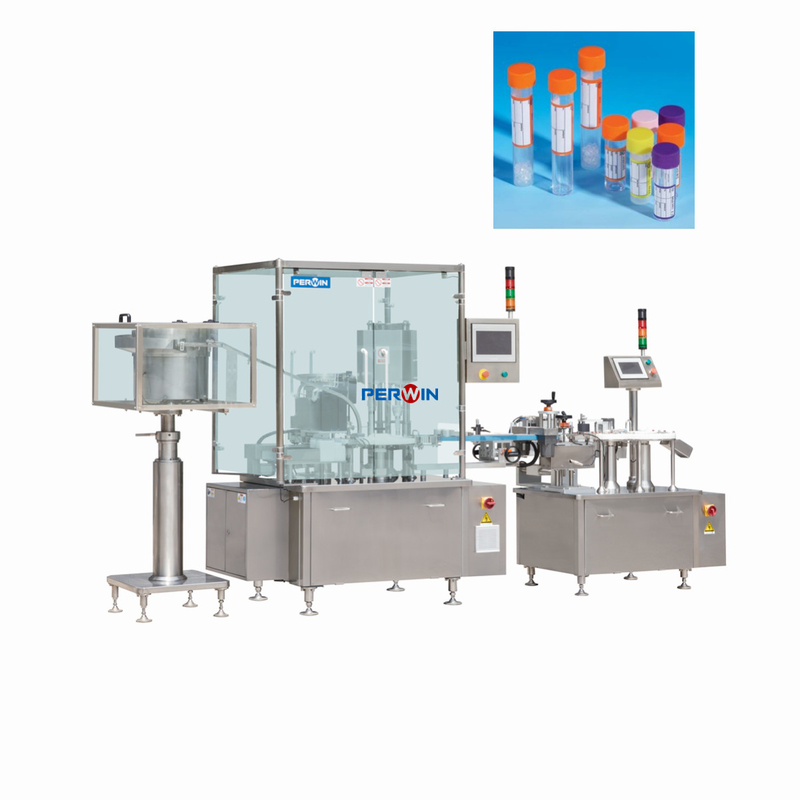

Automated Bottle Filling Machine For Screw Tube 3ml Aseptic Bottle Filling Machine
Parameters
| No. | Working flow and parameters | Automatic test tube filling line |
| 1 | Test tube sorting method. | Automatic tube unscrambler with clamping system. |
| 2 | Tube entering method. | Tube entering into a track; Linear feeder assists in entering the guide star wheel. |
| 3 | Filling method. | 2 sets of OEM peristaltic pumps, dual-channel pump head, stepper system drive, PERWIN assembly. |
| 4 | Capping method | The cam-driven mechanical arm automatically take the cap and pre-cap it, and then turns it to the next station for the second time capping. |
| 5 | Torque control. | Servo technology control, adjust the torque value. |
| 6 | Connection with labeling machine. | A set of clamping and conveying mechanism. |
| 7 | Labeling method. | Vertical positioning labeling machine, labeling accuracy is ±0.5mm. |
| 8 | Production capacity | 60~80pcs/min. |
| 9 | Printer | Zebra |
| 10 | Control method | Whole line PLC intelligent linkage, touch screen control, counting function. |
| 11 | Power | Single phase: 110V or 220V; Three phase 208V or 480V |
| 12 | Compressed air | 0.4~0.8Mpa |
Main configuration:
| Items | Brand | From |
| PLC | Siemens | Germany |
| Touch screen | Fuji | Japan |
| Frequency converter | Mitsubishi | Japan |
| Servo motor | Panasonic | Japan |
| Photoelectric sensor | SICK | Germany |
| Pneumatic components | Festo | Germany |
| Main low voltage electric parts | Schneider | France |
1. Are you trading company or manufacturer?
→We are manufacturer of 21 years experience specialized in Pharma and IVD area. We have our own R&D team, sales team, purchasing team, production team and service team located in Shanghai and Jiangsu. We have 110 employees and over 8000 square meters production area.
2. How to install the machine when customers from overseas received the machine?
→Customers install the machine through remote support from Perwin.
→Perwin send engineers to customers country.
→Perwin have overseas service engineers in USA, Europe and South Asia.
→Perwin provide manuals, trouble shootings, diagrams and drawings to customers.
